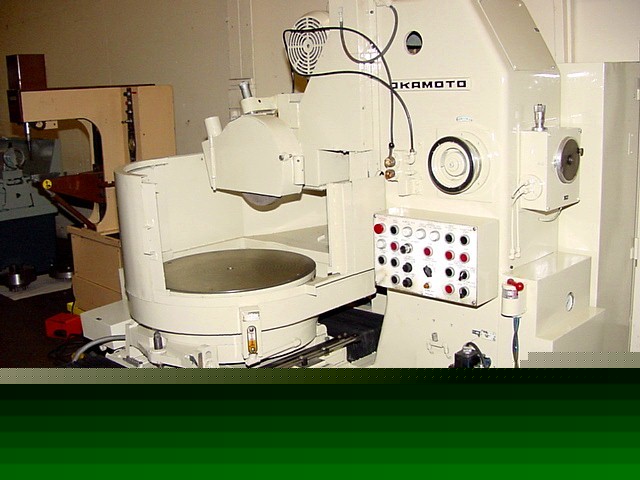

Okamoto model prg-6, 24" rotary surface grinder
OKAMOTO MODEL PRG-6, 24" ROTARY SURFACE GRINDER
OKAMOTO ROTARY SURFACE GRINDER
MODEL: PRG-6 S/N: 1076 MFG.: 1984
DIAMETER OF MAGNETIC CHUCK....... 24"
MAX. SWING (COOLANT GUARD)....... 28"
STANDARD WHEEL SIZE......... 14"DIA. x 1-1/2"W x 5"B
MAX. HEIGHT CENTER WHEEL......... 15"
MAX. ANGLE (CONVEX/CONCAVE....... 3 DEGREES
TABLE SPEEDS..................... 30-100 RPM
TABLE TRAVEL (MAX)............... 16"
TABLE TRAVERSE RATE.............. 0-15 FPM
SPINDLE DOWNFEED................ 0.00005-.0010
SPINDLE MOTOR.................... 10 HP
HYDRAULIC SYSTEM MOTOR........... 3 HP
APPROXIMATE MACHINE WEIGHT ...... 7,780 LBS.
MACHINE TOOL DIMS. ............ 86"L-R x 106"F-B x 79"H
NEUTROFIER VARIABLE MAGNETIC CHUCK CONTROL
POWER RAPID TRAVERSE FOR WHEEL ELEVATION
AUTOMATIC CYCLE WITH SPARKOUT TIMER
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS
MAIN CIRCUIT BREAKER IN ELECTRICAL CABINET IS
** SUPERB CONDITION & APPEARANCE, MACHINE WAS
SERVICED BY US, TAKEN APART, THOROUGHLY CLEANED,
AND REPAINTED. THIS MACHINE IS READY TO BE
PUT IMMEDIATELY INTO SERVICE **
