Tv 170-230 mhz rf power amplifier pallet vhf 500 watts
VHF TV BROADCAST RF POWER AMPLIFIER PALLET VHF 500 WATTS 170-230 MHz
The DC supply voltage are 32V / 22A max.@ 500Watts out.

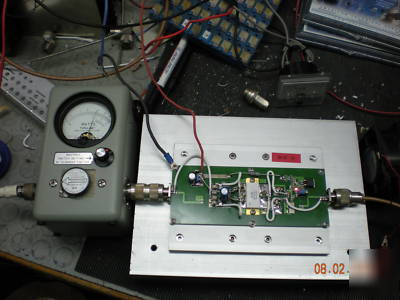

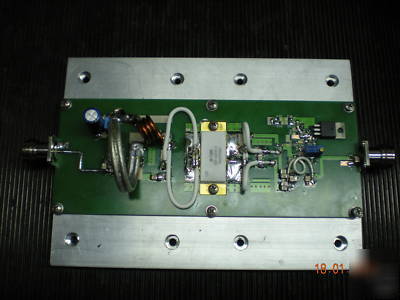

Foto 1. :PALLET TV VHF C BAND AMPLIFIER.

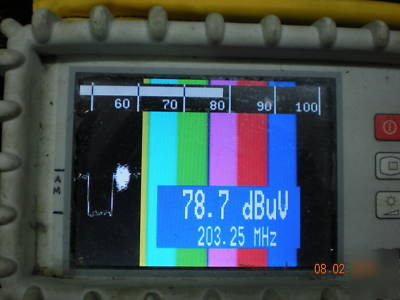

Foto 2.:TEST IN FQ 203.25 MHz / & OUT POWER 400 WATTS WITH DRIVER 3,4 WATTS.

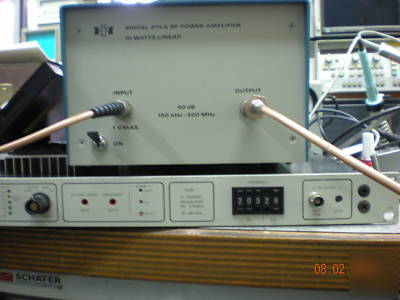

Foto 3.:DRIVER ENI AMPLIFIER 4 WATTS WITH MODULATOR FOR TEST THIS AMPLIFIER IN FQ 203.25MHz / - OUT 400WATTS.
Foto 4.:AMPLIFIER PALLET VHF IN WORCKING STATUS with monitoring video bar level 400 watts
For this test i use one Modulator PHLIPS TVCM-1 with out power -3db and after one ENI amplifier with output 3,9 watts for driver photo 3.
The Modulator PHLIPS TVCM-1and the ENI amplifier is only for test and is not for sale.
