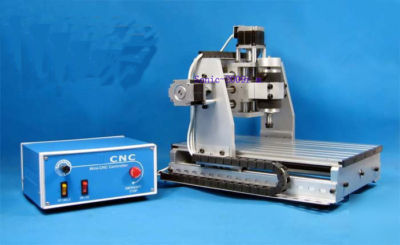

Mini cnc engrave pcb acrylic complete machine milling
This small multifunctional engraving machine can be used to carve PCB circuit board, advertising board (two-color plates, Acrylic, PVC), wood on the relief, plaster, material models, can be less than 2mm aluminum plate on the opening holes of various shapes, holes, the thickness can be 70mm or less directly in the form of plastic boxes, aluminum casing milling holes carved.
24V, 10A Switching Power Supply
PWM spindle speed board + power supply integration
Spindle switch; driver switches; speed control knob; emergency stop button(E-Stop button)
Parallel port; limit extension interfaces.
Effective Distance: 300X400X60mm
work piece height: less than 70mm (under the table and the Z-axis plate spacing)
Table: T-shaped aluminum trough (Size: 550X360X20mm)
Frame Material: aluminum alloy
stepper motor: 2A 2-phase stepper motor NEMA23
Drive Unit: High-Speed Precision Dual Rotary Road, trapezoidal screw and aluminum flexible coupling
Spindle Motor: 1.5KW Air-cooled Spindle Motor (Max Speed 24000, ER11 chuck)
carving precision: <0.08mm (Eagle Square perfect circle, perforated, measurement accuracy)
Repeat positioning accuracy: <0.03mm
blank line speed: greater than 4000mm / min
Engraving speed: 100 ~ 2500mm / min
step drive: 2.5A axis stepper drive controller
drive power: 24V 10A power source
Spindle power: 75V 200W toroidal transformer(rectification treatment)
We suggest you choose Water cooling spindle and matched VFD systems,it's steady and less noise than the air cooling spindle.
