Itt pure-flo sanitary diaphragm valve 3/4" butt weld

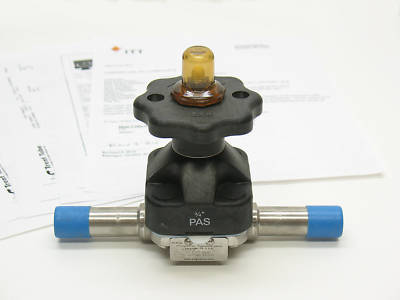

ITEM: ITT Pure-Flo Diaphragm Valve Model# .75-F-428-TEB-SPECIAL|1.5"|-6-R2-963S-S2-M2-SQD1 with Manual Handwheel Actuator, 3/4" OD Butt Weld Ends (see other specs below), w/ a copy of actual original ITT Certificate of Compliance (C of C w/ MTRs Material Test Reports) and "PURE-FLO Diaphragm Valves Installation, Operation and Maintenance Manual."
.75 = 3/4" Nominal Tube OD Size
F = 316LSS Forged Body, Pressure Rating CWP150
428 = Butt-Weld Tube Ends, 16 Gauge
TEB = Tube Extensions, Both Valve Ends (P1 & P2)
SPECIAL |1.5"| = 1.5" Tube Extension Length (Suitable for in-line automatic orbital welding)
6 = Interior Finish: Ra 25 Microinch Max. Sanitary Polish; Exterior Finish: Ra 35 Microinch Max. Sanitary Polish, Welds Removed
R2 = Two Piece Grade R2 Teflon PTFE Diaphragm (FDA Compliant, -30 to 350 F) w/ Grade "H" EPDM Backing Cushion (FDA Compliant, -30 to 300 F, Durometer A 65-75)
963S = PAS (Polyarylsulfone) Plastic Manual Bonnet, Rising Handwheel w/ Travel Stop, Sealed Bonnet Type (option, suffix "S" - threaded SS plug on the bonnet that provides secondary containment)
M2 = Sanitary Bonnet Internals
SQD1 = Special Quality Documents: Certificate of Compliance, Body/Tube/Rod CMTR
CONDITION: Surplus NEW in PRISTINE CONDITION, no box, w/ Certificate of Compliance and instruction manual.
SOURCE: From a cancelled construction project at a large pharmaceutical manufacturing company, surplus to their ongoing operations.
