> Automated ultrasonic plastic welding system
Automated ultrasonic plastic welding system
Automated Ultrasonic Plastic Welding System Used
Model/Part No: Our Item ID: 5762
Sold as Pictured Feel free to contact us for any additional information or pictures.

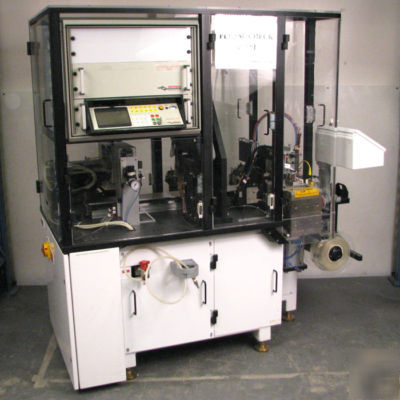

This Ultrasonic welding machine was pulled from a working evironment and is in excellent condition. The unit was orginally used for ecapsulating medical devices in plastic using the Herrmann Ultrasonic welder. It is fully automated using a Omron PLC system and could be easily reconfigured to fit your custom application. This plastic welding machine has several parts; here are a few major components: 1 Omron Interface Color Touch Screen Display Model NT31C-ST141B-EVI 1 Omron Sysmac CPM2A Programmable Controller 1 Omron CIF01 Peripheral/RS-232C Adapter Unit for Peripheral port level conversion 2 Omron 20EDR Expansion I/O Modules 1 Omron MAD01 Analogue I/O unit 1 Omron S82K-100024 Power Supply 1 Electro-Craft BRU Series Model DDM-009x Servo drive analog 15AMP w//Index Ultra 100 Herrmann Dialog 2112 with a Dynamic Active Control 1012 Models: 1 Herrmann 1012 Model DC-35-NE Dynamic Active Control Unit 1 Herrmann Dialog 2112 Ultrasonic Controller interface 1 Herrmann Ultrasonic Plastic Welding Head This welding equipment was pulled from a working environment but has not been tested in our facility due to the power requirements (208VAC 3 phase) needed.
Omron Interface Color Touch Screen Display
The NT31/NT31C is a sophisticated display unit (programmable terminal) which automatically displays information and can also be used for operations when necessary. The NT31/NT31C displays real-time information about the system and equipment operating status, etc. Its power of expression is enhanced by graphs and other visuals, making the displays easy to understand.
Omron Sysmac CPM2A Programmable Controller
The advanced CPM2A series micro controller delivers you the most feature-packed micro solution in control industry. With wide variance of built-in I/O points and supply voltage, this small packaged controller offers its rich instruction set, convenient built-in multiple communication interfaces to programming peripherals, SCADA host or HMI device.
Its high speed I/O processing enable easy implementation of motion control application. Distributed and autonomous control system could be realized through the hi-speed CompoBus/S interface to the CPM2A.
Herrmann Dialog 2112 with a Dynamic Active Control 1012
This welding programmer provides active controlling capability and amplitude which minimizes the need for booster charges. The generator tunes it self automatically in 1000 hz range. Includes good or bad weld detection which eliminates the need for weld inspection. Comments: This unit is an excellent cost effective alternative for any sonic-welding application.
Manufactures specs may not fully describe unit and is for reference only.
Item Tested?: Physical Condition: Excellent; Working Condition: 1000 | 70x 50x70 | 1
