> New 10 pack TE1155 sprague capacitor 10UF 16VDC axial

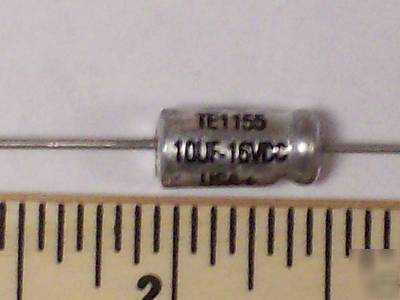

New 10 pack TE1155 sprague capacitor 10UF 16VDC axial
TE1155 SPRAGUE CAPACITOR, 10UF, 16VDC
Proven dependable performance in the industrial
and electronic equipment with either transistor or
modified electron-tube circuits
All terminal connections welded, eliminating possibility of
open or intermittent contacts occasionally found in
pressure joints of conventional capacitors
Superior in size, performance characteristics, shelf life,
Metal-encased with clear plastic outer insulating sleeve
Excellent circuit performance when used as coupling
Minimum drain and long battery life when used in battery
Better performance under life test than most miniature
DIMENSIONS AND AVAILABLE FORMS
Ripple current 10 to 600 max. at 120 Hz,
After test, capacitance value shall not
have changed by more than 20 %, the
equivalent series resistance in ohms
shall not have exceeded 150 % of initial
requirement and the leakage current
shall not have exceeded the initial
Maximum DC leakage current at + 25 C
for all capacitors is 15 A, except units in
case code DD, which is 15.8 A
The capacitance and equivalent series
resistance shall meet the initial
requirements and the DC leakage
current shall not exceed 300 % of the
