Cincinnati landis, viking 200 cnc centerless grinder

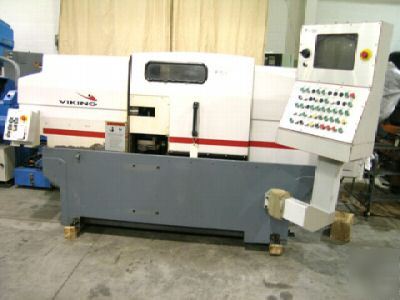

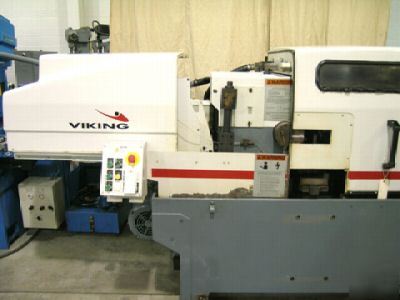

Liberty Machinery Company You are looking at (1) Used - Cincinnati Milacron Landis Viking Super Series 200 CNC Centerless Grinder*-Serial No. HV 35024Condition - Used
-SPECIFICATION:Grinding Wheel Diameter - Maximum 16" (405 mm)
Grinding Wheel Hole Size 8" (203 mm)
Regulating Wheel Diameter - Maximum 12" (305 mm)
Regulating Wheel Hole Size 7" (178 mm)
Work Diameter 0.05" - 2.5" (1 - 60 mm)
Grinding Wheel Width 8" (205 mm)
Regulating Wheel Width 10" (255 mm)
Main Drive Horsepower 20 HP (15 kW)
Surface Speed 8,500 SFPM (45 m/Sec)
Optional 18,000 SFPM (90 m/Sec)
Regulating Wheel Speeds 10 - 600 RPM
Approximate Weight 20,000 Lbs. (9072 kg)

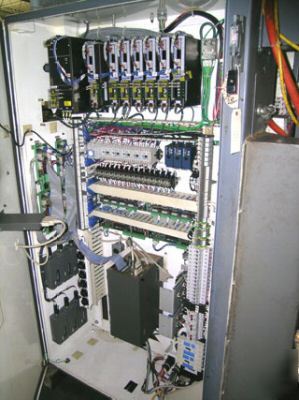

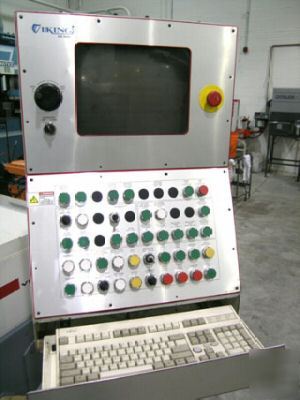

Cincinnati Milacron OA9600 "Open Control System" CNC Control, Program and Edit
while in Cycle, Standard Push Button Operation, Fast Input or Changeover,
SBS Automatic Wheel Balancing System

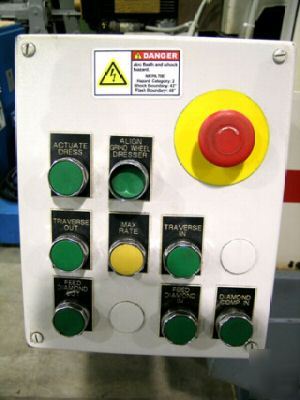

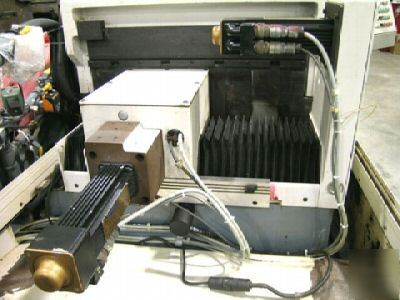

CNC Servo Driven Rotary Diamond Wheel Dressing on Grinding Wheel
CNC Servo Driven Single Point Dressing on Regulating Wheel
United Air Specialists Model VCC-1500 Mist Collector

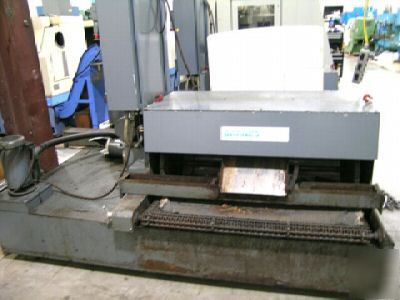

Barnes Model MPE-25 Combination Magnetic Drum/Paper Filtration System
Part Tolerances to 0.000 0006" (0.15 micron)
