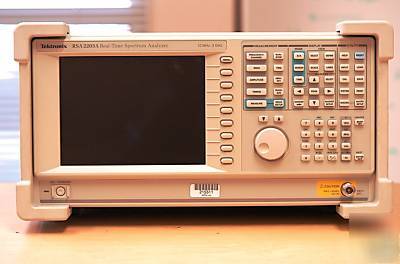

Tektronix rsa 2203A real-time spectrum analyzer 3 ghz
* Real-Time Spectrum Analysis Provides Seamless Capture of Time-varying, Transient or Periodic RF Signals not Possible with Swept Spectrum Analyzers
* Up to 65.536 Ms (256MB) of Internal Memory Provides for Complete Analysis of Signals Over Time Without Making Multiple Measurements
* Time-correlated, Simultaneous Views of Time, Frequency, and Modulation Domains Provide Greater and Unique Understanding of Signal Behavior
* Spectrogram Provides a Revealing Picture of RF Signal Frequency and Amplitude Behavior Over Time Not Possible with a Swept Spectrum Analyzer
* Frequency Mask Trigger in RSA3300A Series Available only from Tektronix Makes it Easy to Capture Fast, Transient, or Intermittent Signals that Swept Spectrum Analyzers Would Miss
* Built-in Demodulators Enhance Analysis of AM, ASK, FM, FSK, and PM Signals
RSA Series Spectrogram uniquely shows time-varying signal behavior in frequency change/stability, spectrum occupancy, pulsed signal timing, power change and more! The sample on this page shows the frequency settling characteristic of a transmitting device.
Time-correlated multi-domain view provides a new level of insight about design or operational problems and possible solutions. The example on this page includes frequency, time, and modulation domain views of an AM-modulated pulsed signal with pulse-to-pulse phase variation measured in the modulation domain.
