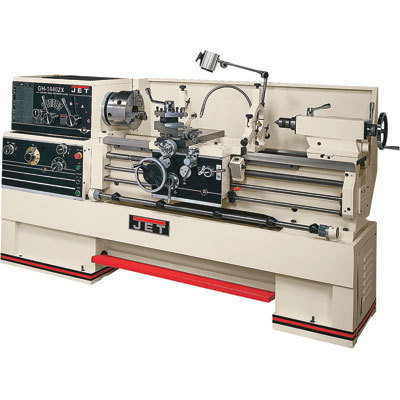

JET ZX Netak Lathe - 14 x 60 Model# GH-1460ZX -New
The 14in. ZX Series large spindle bore lathe is designed exclusively by with a 3 1/8in. bore spindle supported by two tapered and one ball bearing. Chrome molybdenum headstock gears are hardened, ground and shaved. Universal gearbox allows inch, metric, diametric and module pitch threads, no change gears required. Carriage features one-shot lubrication and Turcite B on bed sliding surfaces. Stand Included: Yes, HP: 7.5, Volts: 230/460V pre-wired 230V, Speed (RPM): 42 - 1,800, Spindle Speeds (qty.): 12, Width Between Centers (in.): 60, Carriage Travel (in.): 55, Thread Cutting (in.): 1 5/8 - 72, Thread Cutting (mm): .05 - 20, Dimensions L x W x H (in.): 117 x 40 x 48 T-slotted compound slide featuring a four-way tool post One-piece cast iron base absorbs vibration allowing heavier cuts High-quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground Removable gap allows up to 23 5/8in. diameter work Five-position automatic carriage stop increases productivity Attractive chrome control levers, dials and knobs Tolerance test certificate included 10in. 3-jaw scroll chuck with top reversing jaws 12in. 4-jaw independent chuck 12in. face plate Four-way tool post Follow rest Large-capacity steady rest Fully integrated coolant system Full-length splash guard and coolant return Large, easy-to-use foot brake Articulating halogen work lamp Centrally located controls with jog button Threading dial Mounting pads and levelers Spindle sleeve (MT-7 to MT-5) Dead center Live center
