Maho mh-1000 c/k universal cnc hvy-duty milling machine
MAHO MH-1000 C/K UNIVERSAL CNC HVY-DUTY MILLING MACHINE
50-Taper, Horiz/Vertical Spindles, Toolholders, VIDEO!

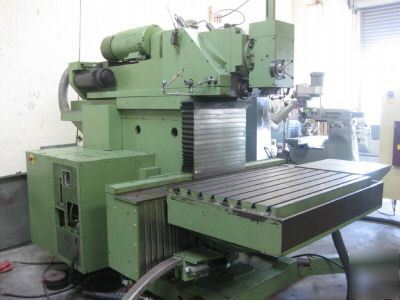

Maho MH-1000 C/K CNC Vertical Milling Machine
In 1st class condition both working & cosmetically, this is one heavy duty miller. 50-Taper spindles both hoizontal & vertical, all box way construction, you can hog out still with this bad boy. Made in Germany and of the highest quality. All functions on this machine have been tested and are in working condition. See the short video below of the machine in action as we ran a short program on the machine.
Maho Vertical Universal CNC Machining Center
Table Size (Rigid Rectangular) 31.5" x 49.2" (8 T-Slots)
Spindle Speeds (CW & CCW) 20-2000 rpm
Number of Spindle Speeds Programmable (4-Ranges)
Spindle centerline to bottom of ram 3.90"
Spindle centerline to table top 7.28-29.33"
Spindle face to table centerline distance 2.75 to 24.80"
Spindle face to bottom of ram 2.44"
Spindle face to table top distance 5.83" to 27.87"
X-axis Feed / Rapid Rates .04 -39.3 / 118 ipm
Y-axis Feed/ Rapid Rates .04-39.3 / 118 ipm
Z-axis Feed / Rapid Rates .04 - 39.3 /118 ipm
Bi-Directional positioning accuracy over full travel .0005"
Bi-Directional repeatability .0003"
Machine dimensions LXWXH 12.8' x 11.5' x 7.2'
Indramat Electronic 3-D copying control
5-Spindle Milling Head Attachment
Hydrauliclly counterbalanced slide & table assembly
