5" swg 12" cc myford MG12 od grinder, hand feeds, 10" w
5" Swg 12" cc Myford MG12 OD GRINDER, HAND FEEDS, 10" W

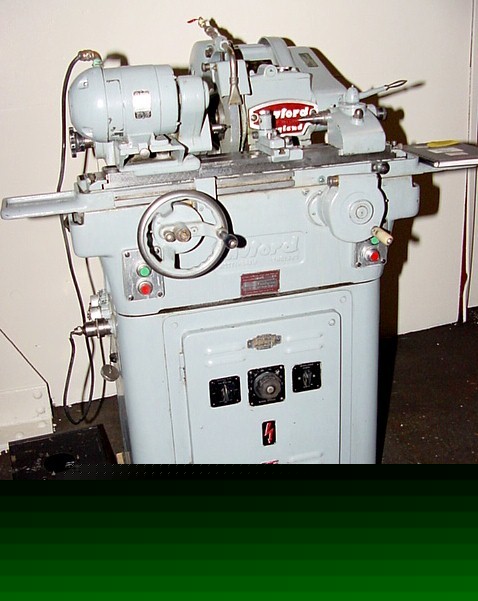

5" Swing 12" Centers Myford MG12 OD GRINDER, HAND FEEDS, 10" WHEEL, LATER WORKHEAD
5" X 12" MYFORD "PRECISION" PLAIN HANDFEED
MODEL: MG12 S/N: S94470 NEW: 1970
MAXIMUM GRINDING DIAMETER ............................ 3"
SWING OVER TABLE ..................................... 5"
MAXIMUM TABLE TRAVEL ............................ 13-3/4"
CAPACITY BETWEEN CENTERS ............................ 12"
TABLE SWIVELS EITHER WAY ...................... 7 DEGREES
TABLE TRAVEL PER REVOLUTION OF HANDWHEEL ... 2.04"& 0.51"
TOTAL TRAVEL ......................................... 3"
FINE FEED ADJUSTER (NUMBERED DIVISIONS) ......... 0.0001"
WHEEL SPEEDS (2) ........................ 2200 & 2500 RPM
GRINDING WHEEL (RECESSED) .................. 10" X 1" X 3"
WHEELHEAD MOTOR .................................. 2 H.P.
WORKSPEEDS, STEPLESSLY VARIABLE ........... 50 TO 900 RPM
CAPACITY THROUGH STANDARD DRAW TUBE ................ 3/4"
MAXIMUM COLLET CAPACITY ............................ 3/4"
WORKHEAD MOTOR ................................. 1/2 H.P.
APPROXIMATE MACHINE WEIGHT ..................... 1500 LBS
MYFORD "LATER STYLE" DUAL LIVE/DEAD WORKHEAD
COLLETS ARE: 7/64, 3/32, 5/32, 1/8, 3/16, 7/32, 1/4
AVAILABLE ACCESSORIES FOR THIS MACHINE:
MYFORD INTERNAL GRINDING ATTACHMENT, $1,950
MYFORD SWIVELLING WORKHEAD, $1,500
** SUPERB CONDITION & APPEARANCE - COMPLETELY GONE THRU
