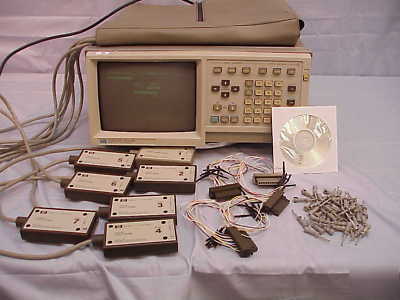

Hp 1630G logic analyzer w/ accessories hpib **tested
The HP 1630G Logic Analyzer has up to 65 channels, eight of which can be used for high-speed timing
analysis. The unit is essential for engineers developing 16-bit microprocessor-based products. State
analysis offers 25MHz and 1k memory, timing analysis provides speeds to 100MHz. Additional system
performance features for time tagging, time-positional charting, and module linkage histograms. It offers
State Analysis, Timing Analysis, Timing post-Processing, System Performance Analysis, Interactive
system makes setup and configuration simple.
Provides state, timing, and system performance analysis in one instrument
Full compare mode (HP 1630G)
7 Pods: 10273A X3, 10271A X3, 10272A X1
4 Probe Tips Assemblies (Lead Sets)
