Commercial kitchen ventilation upblast exhaust fan 5000

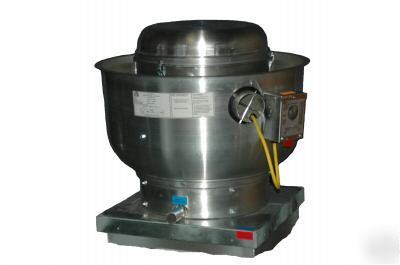

VXB24 Belt Drive Centrifugal Upblast Exhaust Fan with 24" wheel
Exhaust Fan handles 5000 CFM @ -1.000" wc. Fan runs at 825 RPM.
Exhaust Motor: 2.000 HP, 3 Phase 208 V, 6.0 FLA, ODP (Open Drip Proof)
- Grease Cup for kitchen-duty centrifugal exhaust fans, Box Dimensions 15-3/4 L X 5-1/16 W X 3-3/4 H (18 GA.) x1
A wide variety of motors are available to meet specific application needs.
Heavy duty construction, durable and weather resistant.
Non-overloading backward inclined wheels, blades and inlets fabricated from 3003-H14 aluminum.
Wall mount applications, units up to 24" nominal wheel can be wall mounted.
Forced fresh air through the motor compartment cools motor and ensures long motor life.
Quick release latches allow for easy access to motor compartment.
Variable pitch motor pulley allows for field adjustment and system balancing.
High efficiency combined with low tip speeds result in quiet operation.
Standard emergency disconnect switch. Rated for restaurant and general ventilation applications Grease classification tested
Selected Options: Grease Cup for kitchen-duty centrifugal exhaust fans, Box Dimensions 15-3/4 L X 5-1/16 W X 3-3/4 H (18 GA.)
