24" w 80" l acer ags-2480AHD 3 axis surface grinder, mi
24" W 80" L Acer AGS-2480AHD 3 Axis SURFACE GRINDER, Mi

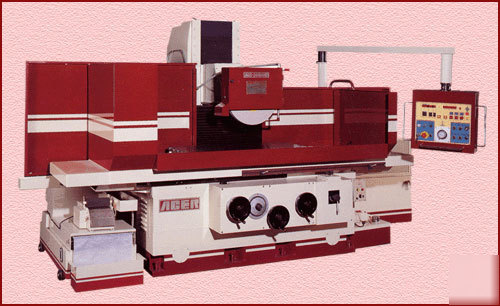

24" Width 80" Length Acer AGS-2480AHD 3 Axis SURFACE GRINDER, Microtend Z axis NC control, Pulse G
MODEL: AGS-2480AHD w/Microtend Z axis NC control
Working Surface of Table (W x L): 24" x 79"
Max. Grinding (W x L): 24" x 79"
Max. Crossfeed Travel: 24-1/2"
Distance Between Table Surface & Spindle Center: 33"
Auto Downfeed Micro Adjustment Dial: Per Graduation 0.0001"
Longitudinal Travel (from - to): 6 - 79"
Crossfeed Travel (from - to): 0 - 24-1/4"
Spindle Motor: 15 hp x 6 p (20 hp Optional)
Hydraulic Pump Motor: 7.5 hp x 6 p
Auto Downfeed Motor: 400 W DC Servo Motor
Grinding Wheel (O.D. x T x I.D.): 20" x 5" x 2"
Rotation Speed of Spindle (Horizontal): 1150 RPM / 60 HZ
Max Load Capacity in Addition to Magnetic Chuck: 3,300 lbs.
Japanese spindle motor 15 HP (20 HP optional).
Spindle center to table top: 33".
3 axes auto movement with Microtend Z axis NC control.
Operation of manual downfeed depends on three step micro
Hitachi PLC electronic control.
Ball screw for crossfeed travel.
Crossfeed and table have double "V" slideways.
Spindle with six class 7 super precision angular contact ball bearings.
Grinding capacity is 24" x 80"
Spindle head housing is laminated with Turcite B.
24" x 80" Electro-Magnetic Chuck
