New tranax 1705W atm w/e-lock 1K cassette no contract
Installation is not included in this sale, but can possibly be arranged for a small fee depending on geographic location.
We are RELIABLE ATM and we are America's most reliable ATM company.
Contact us: 1.888.314.2867 or ****@gmail.com

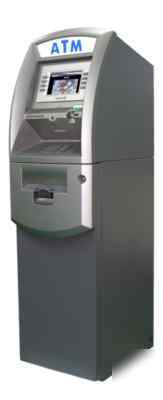

* Raising the bar for Retail ATMs, the Hantle 1700W provides the all latest technologies and high end features in a modern, elegant design which includes an integrated topper sign.
The 1700W integrates a host of features including a 7 High-Resolution Color LCD supporting multiple custom screen advertisements. Communication options include 56K Modem or integrated Ethernet (SSL).
Built on a platform that is both modular, and secure (UL291 Business Hours), the 1700W offers you the latest technologies in a chassis that is easy to install and service.
* Maintenance: Front Service Type

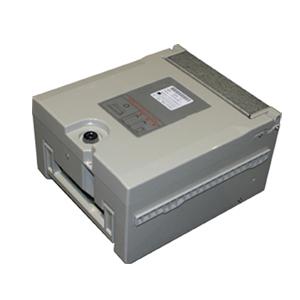

* Cassette Capacity: Max. 1,000 notes (New US Notes)
* Reject Capacity: Reject Bin: Max. 200 notes
* Compatible Notes: US dollar bills, Canadian dollar bills, AUD dollar, China Yuan
* Dispense Speed: 3 Sheets / sec
* Note Pick up Type: Friction Type
* Dimension: 270mm * 295mm * 430mm(W*H*D)
* Note Shortage Detection: Yes
* Samsung S3C2440AL-40 RISC 32-bit CPU
* WinCE 5.0 Operating System
* Integrated Ethernet (RJ-45)
* 110 / 220 volts (manual selection)
* Automatic paper loading and cutting
* Dispense capacity of 800 notes (fixed cassette)
* Dispense capacity of 1000, 1700, 1700x2 (removable cassette)
* Ultrasonic Double-Detection sensor

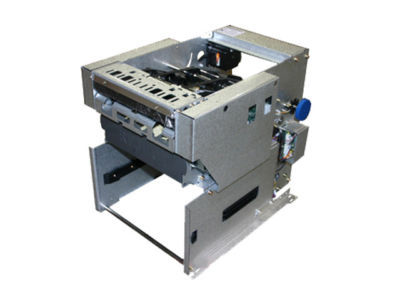

* Cash dispensing unit is mounted on a sliding panel for easy service
* Automatic Jam-Clearing function reverses jams and diverts to reject bin
* 7 inch TFT LCD panel 800 x 480 resolution WVGA
* Eight function keys for menu selection
* Displays up to 8 customizable graphics screens which rotate on idle, and while processing
* Triple DES compliant Encrypted Pin Pad (EPP)
* PCI Certified (approval number 4-70003) / Interac Certified (Canada)
* Tamper resistant design erases all programming and stored master keys if opened
* 16 keys with integrated Braille symbols
* Left and right arrows for scrolling
* ENTER, CLEAR, CANCEL and BLANK keys
* The front bezel assembly consists of a front bezel, LCD module, key pad module, magnetic card reader module, ADA voice guidance jack, and a locking mechanism
* The front bezel assembly slides in and out and also hinges forward for maintenance using thumbscrews
* The top cabinet houses a main control board, power supply, receipt printer, and a front bezel assembly
* The main control board, power supply, receipt printer paper, and front bezel assembly are mounted on a sliding tray, which also hinges forward for easy maintenance and service
* Include an Integrated illuminated topper
* UL291 business hour certified
* UL listed combination lock (electronic locks optional)
* Handle and combination lock are covered by a plastic bezel
* Requires LINE, NEUTRAL, and GROUND
* Requires dedicated Analog phone line Not for use with Digital lines
* Storage: 32F 104F, 10% < RH < 90% non-condensing
* Operating: 40F 95F, 15% < RH < 85% non-condensing
* Standard2 (CSP200 emulation)
* Standard3 (Extended Message Format)
* SSL Length Prefix W/O ETX
* SSL Length Prefix With ETX
* Compatible with most 3rd party wireless devices
