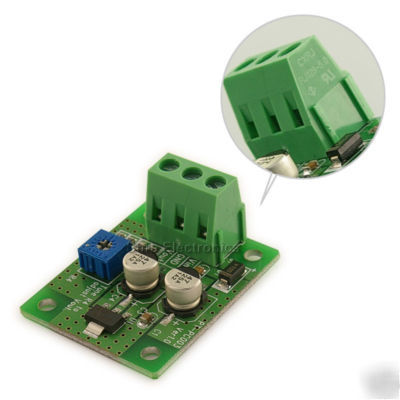

LM317 dc in 5~24V out 2.5~12V volt regulator converter
6. Output Ripple and Noise: Maximum RMS 3mV, Maximum 8mV P-P, @5V, 0.2A output.
7. Maximum Input Voltage: 24V
8. Suggested Input Voltage: +5~+24V DC
9. Output Variable Between: +2.5V ~+12V
10. Operating Environment Temperature Range: 0 ~+55?.
11. Storage Environment Temperature Range:-25~+85?.
for example, if the input voltage is 10V, the output voltage is 7V, the maximum output current is 1.5/ (10-7) =0.5A. when the power consumption reaches 1.5 watt, the board temperature will rise dramatically by 40? based on ambient temperature.
