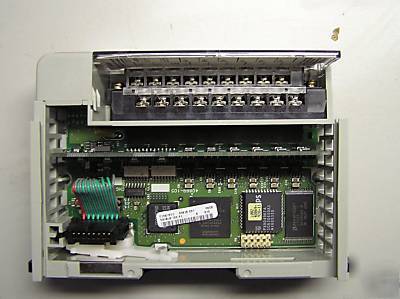

New allen bradley 1769-hsc high-speed counter module
1769-HSC High-speed Counter Module
Use the 1769-HSC when you need:
* a counter module that is capable of reacting to high-speed input signals (1 MHz).
* to use count and rate values to activate up to four embedded outputs and 12 virtual outputs, based on user-defined ranges.
* to generate rate and time-between-pulses (pulse interval) data.
* as many as two channels of quadrature or four channels of pulse/count inputs.
The module may not be more than this number of modules away from the power supply or controller. When using 1769 I/O in the local rack with a 1768 controller, the distance rating is from the controller rather than the power supply.
Current, Off-State Input, Max.
2 quadrature (ABZ) differential, configurable
Voltage Range, On-State Output
Voltage, On-State Output, Max.
Leakage Current, Off-State Output, Max
Current, On-State Output, Max.
