> Murata mqe series vco, MQE001-965, 953~978 mhz qty 10
Murata mqe series vco, MQE001-965, 953~978 mhz qty 10

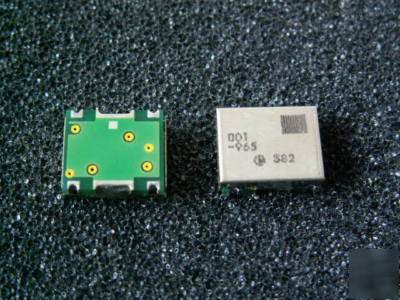

Item Description: Lot of 10 each new Murata MQE Series VCO (Voltage Controlled Oscillator), Part # MQE001-965
2.1 Supply Voltage (VB) :4.2+/-0.25V
2.3 Control Voltage Range(VC) :+1.0~+4.0V
2.4 Operating Frequency Range :953~978MHz
2.5 Control Voltage Sensitivity :>=9MHz/V
S level:1KHz freq.,+/-8KHz dev.,0.3~3KHz B.W.
2.10 Pulling Figure :+/-500KHz
(VSWR=2.0 for all phase, ref:50ohm)
2.11 Temperature Stability :+/-2MHz
(at -30~+70 degree C,ref:25 degree C)
2.12 Spurious Response :<=-10dBc
(NOTE)Basic Condition : Supply Voltage VB=4.2V,
Temperature 25 degree C, Load 50ohm
