Ftdi UM232R module usb to serial uart converter avr pic

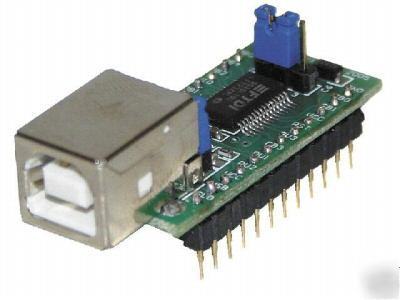

Click for view in large resolution UM232R module
Click for view in large resolution Pin names of UM232R module
Click for view in large resolution Dimensions of UM232R module
Click for view in large resolution UM232R to microcontroller typical connection schem
FTDI UM232R USB-Serial UART Development DIP Module
The UM232R module is a USB- Serial UART (TTL) development module for the FT232R IC device. The UM232R is supplied on a PCB designed to fit a 24 pin DIP socket, and provides access to all UART and CBUS interface pins of the FT232R device. Device detected by Windows as standard USB COM port.
The UM232R can be configured as either USB bus-powered or self-powered and also supports 5V or 3V level interface IOs via two sets of jumper setting pins. Full hardware handshaking is supported and the UM232R can communicate at up to 3MBaud at TTL/CMOS levels.
Ideal for rapid prototyping and development of FT232R designs, an attractive quantity discount structure also makes this module suitable for incorporation into low/medium volume finished product designs.
The UM232R plugs into a standard 24-pin 0.6in wide DIP socket.
* USB to RS232 / RS422 / RS485 Converters
* Upgrading Legacy Peripherals to USB
* Cellular and Cordless Phone USB data transfer cables and interfaces
* Interfacing MCU / PLD / FPGA based designs to USB
* USB Audio and Low Bandwidth Video data transfer
VIRTUAL COM PORT DRIVERS for :
