> New dmtg cv cnc lathe with fagor 8055 tc control -

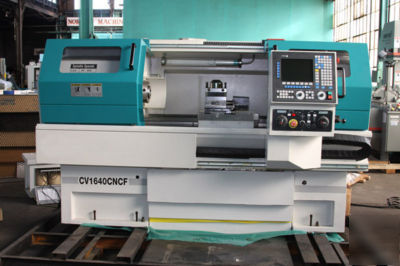

New dmtg cv cnc lathe with fagor 8055 tc control -
SPINDLE DRIVE MOTOR 7.5/10 HP (5/7.5KW)
MIN. SPINDLE SPEED FOR FULL HP: 70 RPM
X AXIS RAPID TRAVERSE: 157 / MIN
Z AXIS RAPID TRAVERSE: 197 / MIN
HORIZ. 4-POSITION ELECTRICAL TURRET INDEX TIME:
POSITIONING ACCURACY: 0.0002
TAILSTOCK QUILL DIAMETER: 2.48
HEIGHT X WIDTH X LENGTH: 59.8 x 58.3 x 100.4
HORIZONTAL 4-POSITION ELECTRICAL TURRET (NON BI-DIRECTIONAL)
FAGOR 8055 TC CONTROL PACKAGE, OFFERING GREAT VALUE AND RELIABILITY WITH MANY STANDARD FEATURES TO SIMPLY OPERATION AND INCREASE PRODUCTIVITY
EXTRA WIDE 11.81 BED MAXIMIZES SUPPORT FOR SADDLE AND CROSS SLIDE ASSEMBLY FOR SMOOTH MACHINING, EVEN ON LARGE WORKPIECES
VARIABLE AC SPINDLE DRIVE MOTOR FOR EXCEPTIONAL MACHINING POWER
AUTOMATIC TWO RANGE HEADSTOCK ALLOWS FULL HORSEPOWER AT LOW RPM FOR MORE EFFICIENT MACHINING OF PARTS REQUIRING LOW SPINDLE SPEED
CONTROL RIDES ON A RAIL SO THE CONTROL CAN BE POSITIONED FOR MAXIMUM OPERATOR CONVENIENCE
HEAVY-DUTY CONSTRUCTION WITH CAST IRON BASE
BALL-SCREWS FOR THE X AND Z AXES ARE MOUNTED IN PRECISION COMPOUND BEARINGS FOR SMOOTH OPERATION AND ACCURATE POSITIONING
ANTI-FRICTION TURCITE-B COATING BETWEEN SADDLE AND BED WAYS TO REDUCE FRICTION, SUPERIOR DAMPENING PROPERTIES FOR CHATTER FREE MACHINING AND MINIMIZES BED WEAR TO EXTEND MACHINE LIFE
FULLY ENCLOSED, INTERLOCKING GUARDING TO MAINTAIN A CLEAN WORKING ENVIRONMENT AND ALLOW A HIGH RATE OF CHIP REMOVAL
AUTOMATIC LUBRICATION SYSTEM MAINTAINS PROPER LUBRICATION OF SLIDE WAYS AND BALL-SCREWS
