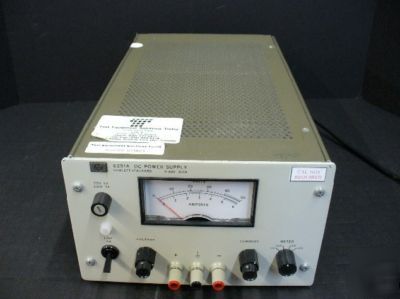

Agilent / hp 6291A power supply
The Agilent 6291A family of convection cooled, 5 1/2 inch, half rack, constant-voltage, constant-current power supplies is available in 100 Watt and 200 Watt power ranges. All models have individual 10-turn voltage and current controls.
* Remote sensing and programming
* Auto-series, auto-parallel, and auto-tracking
* Floating output to serve as positive or negative source
* Output ratings (0 - 55 C): 0-40 V, 0-5 A
* Ripple and noise (20 Hz to 20 MHz): CV: 500 uV rms, 25 mV peak-to-peak; CC: 3 mA rms
* Line regulation: 0.01% + 1 mV, 0.05% + 1 mA
* Load regulation: 0.01% + 1 mV, 0.05% + 1 mA
* Physical Specifications: Weight: 11.3 kg ( 25 lb); Dimensions: 210 mm W x 131 mm H x 435 mm D (8.25 in x 5.16 in x 17.13 in
