Nice haas 4TH axis 8" servo rotary table - #HRT210

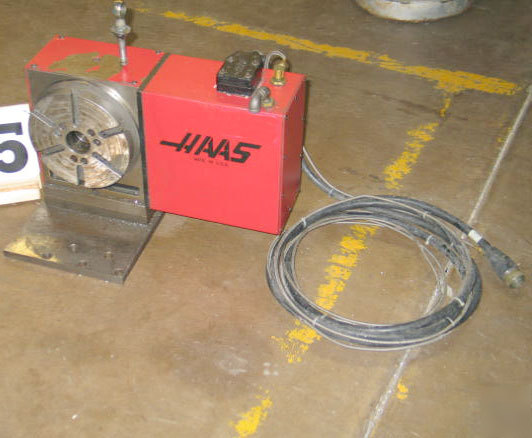

NICE!! HAAS 4th AXIS 8" SERVO ROTARY TABLE - #HRT210
* High Accuracy & Repeatability.
* Horizontal / Vertical Capabilities.
* Large Thru-Hole, allows for bar feeding.
* Coolant Resistant Polyurethane Conduit & Seals and Air Brake.
Specifications:Table: 8.267" diameterT-Slots: 9/16" wide x 3/4" deep @ 60 Spindle Torque: 210 ft-lbMaximum Runout: 0.0005"Backlash: 30 arc/secSpeeds: 0.001 to 60 /sec Center Height: 6" .001"Thru-Hole: 2"Brake Torque: 200 ft-lb @ 100 psiIndexing Accuracy: 15 arc/secRepeatability: 10 arc/secResolution: 0.001 Maximum Rotation / Step: 999.999 Worm Gear Diameter: 6.30"Gear Ratio (worm & gear): 90:1Timing Belt: 2:1Duty Cycle (Full / Low Speed): 50% / 100%Operating Temperature: 100 F (max. ambient)Maximum Air Pressure: 120 psiMotor: 1.5 Horsepower DC ServoElectrical: 115 Volt, Single PhaseOverall Dimensions: 21" x 7-1/2" x 13" tallComes as shown in pictures.
