Keithley compact tec 2510-at autotuning tec sourcemeter
Start Saving with the Keithley Compact TEC 2510-AT Autotuning TEC SourceMeter. The Models 2510 and 2510-AT TEC SourceMeter instruments are designed to Control the power to the TEC to maintain a constant temperature, current, voltage, or thermistor resistance. Measure the resistance of the TEC. Provide greater control and flexibility through a software P-I-D loop.
Start Saving with the Keithley Compact TEC 2510-AT Autotuning TEC SourceMeter. The Models 2510 and 2510-AT TEC SourceMeter instruments are designed to Control the power to the TEC to maintain a constant temperature, current, voltage, or thermistor resistance. Measure the resistance of the TEC. Provide greater control and flexibility through a software P-I-D loop. Designed to ensure tight temperature control for the device under test, the Model 2510 was the first in a line of highly specialized instruments created for telecommunications laser diode testing. It brings together Keithley s expertise in high speed DC sourcing and measurement with the ability to control the operation of a laser diode module s Thermo- Electric Cooler or TEC (sometimes called a Peltier device) accurately.
* 50W TEC Controller combined with DC measurement functions
* Fully digital P-I-D control
* Autotuning capability for the thermal control loop (2510-AT)
* Designed to control temperature during laser diode module testing
* Wide temperature setpoint range ( 50 C to +225 C) and high setpoint resolution ( 0.001 C) and stability ( 0.005 C)
* Compatible with a variety of temperature sensor inputs thermistors, RTDs, and IC sensors
* Maintains constant temperature, current, voltage, and sensor resistance
* AC Ohms measurement function verifies integrity of TEC
* Measures and displays TEC parameters during the control cycle
* IEEE-488 and RS-232 interfaces
* SET: Constant Peltier Temperature, Constant Peltier Voltage, Constant Peltier Current. Constant Thermistor Resistance.
* CONTROL METHOD: Programmable software PID loop. Proportional, Integral, and Derivative gains independently programmable.
* SETPOINT SHORT TERM STABILITY: 0.005 C rms1,6,7.
* SETPOINT LONG TERM STABILITY: 0.01 C1,6,8.
* SETPOINT RANGE: 50 C to 225 C.
* UPPER TEMPERATURE LIMIT: 250 C max.
* LOWER TEMPERATURE LIMIT: 50 C max.
* SETPOINT RESOLUTION: 0.001 C, < 400 V, < 200 A 0.01% of nominal (25 C) thermistor resistance.
* HARDWARE CURRENT LIMIT: 1.0A to 5.25A 5%.
* SOFTWARE VOLTAGE LIMIT: 0.5 to 10.5V 5%.
* OUTPUT RANGE: 10VDC at up to 5ADC.15
* OUTPUT RIPPLE: <5mV rms9.
* AC RESISTANCE EXCITATION: (9.6mA 90 A).14
* Operating Resistance 2, 10, 11, 12 (2.0% of rdg + 0.1W)
* Operating Voltage 2,10 (0.1% of rdg + 4mV)
* Operating Current10 (0.4% of rdg + 8mA)
* AC Resistance 2, 18 (0.10% of rdg + 0.02W)
* OPEN SHORTED THERMOELECTRIC DETECTION
* LOAD IMPEDANCE: Stable into 1 F typical.
* COMMON MODE VOLTAGE: 30VDC maximum.
* COMMON MODE ISOLATION: >109W, <1500pF.
* MAX. VOLTAGE DROP BETWEEN INPUT/OUTPUT SENSE TERMINALS: 1V.
* MAX. SENSE LEAD RESISTANCE: 1W for rated accuracy.
* MAX. FORCE LEAD RESISTANCE: 0.1W.
* SENSE INPUT IMPEDANCE: > 400kW.
* SOURCE OUTPUT MODES: Fixed DC level.
* PROGRAMMABILITY: IEEE-488 (SCPI-1995.0), RS-232, 3 user-definable power-up states plus factory default and *RST.
* POWER SUPPLY: 90V to 260V rms, 50 60Hz, 75W.
* EMC: Complies with European Union Directive 98/336/EEC (CE marking requirements), FCC part 15 class B, CTSPR 11, IEC 801-2, IEC 801-3, IEC 801-4.
* VIBRATION: MIL-PRF-28800F Class 3 Random Vibration.
* WARM-UP: 1 hour to rated accuracies.
* DIMENSIONS, WEIGHT: 89mm high 213 mm high 370mm deep (31 2 in 83 8 in 149 16 in). Bench configuration (with handle & feet): 104mm high 238mm wide 370mm deep (41 8 in 93 8 in 149 16 in). Net
* Weight: 3.21kg (7.08 lbs).
* ENVIRONMENT: Operating: 0 50 C, 70% R.H. up to 35 C. Derate 3% R.H./ C, 35 50 C. Storage: 25 to 65 C

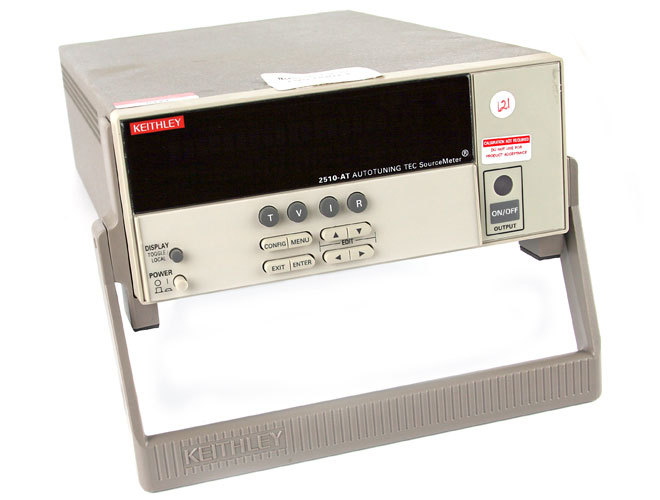

* Keithley Compact TEC 2510-AT Autotuning TEC SourceMeter
