Tdk uhv-6A 2700PF 30KV high voltage ceramic capacitor

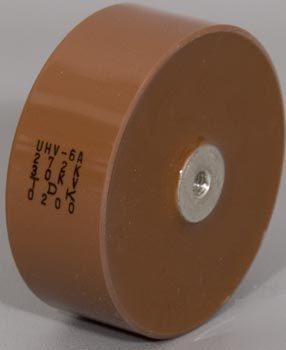

TDK UHV-6A 2700pF 30kV Ultra High Voltage Ceramic Capacitor, Class 2 High Dielectric
Specifications are from TDK and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The Lot Number/Date Code may vary as we have quantity available.
Link to the Datasheet: TDK UHV and FHV Capacitor Series Datasheet
* High voltage power supplies, laser equipment
* Excellent voltage-capacitance characteristics
* Screw terminals for easy mounting
The UHV-6A is a class 2 high dielectric capacitor for DC 30kV Applications. TDK UHV series high voltage ceramic capacitors feature low dissipation and excellent voltage-capacitance characteristics using patented strontium titanate for dielectric material. They are epoxy-encapsulated to meet requirement of high voltage applications.
Operating Temperature Range: 30 to +85 CC
Insulation Resistance: 100,000 Mohms min
Rated Capacitance: 2,700 pF 10%
Dissipation Factor(tan ): 0.2% max
Capacitance Temperature Characteristics: Z5T:+22, 33%[+10 to +85 CC, 25 CC ]
AC Corona Starting Voltage: 3 Pico coulomb max. at 50% of rated voltage min.(50Hz rms)
Withstanding Voltage: No breakdown at 1.5 times of rated voltage, 60s(in oil)
Dimensions: 60mm Dia. x 22 mm Thick (26 mm thick including threads)
