Precision ag x-y-z axis motorized linear slide system

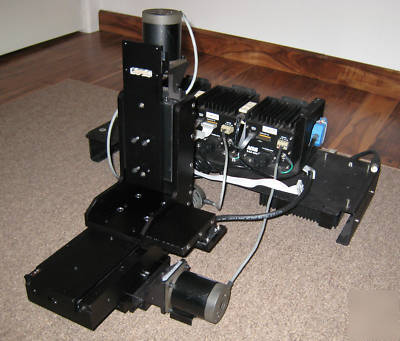

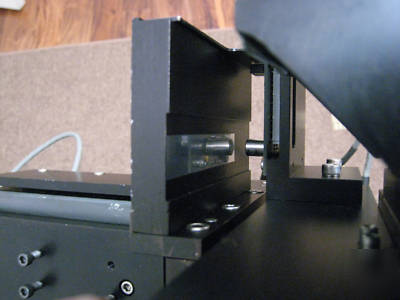

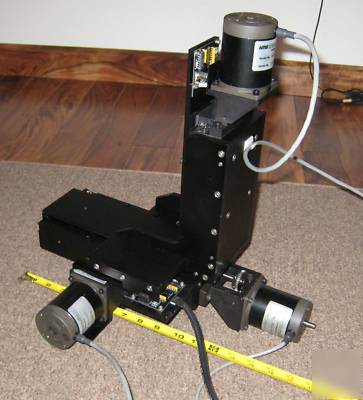

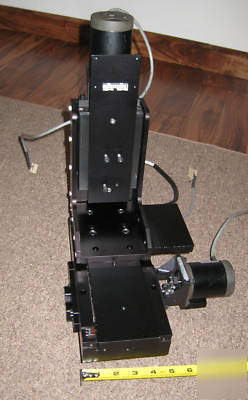

* Automation Gauges X-Y-Z Linear Position Slide (I think the slides are Ironman Ball Slides)

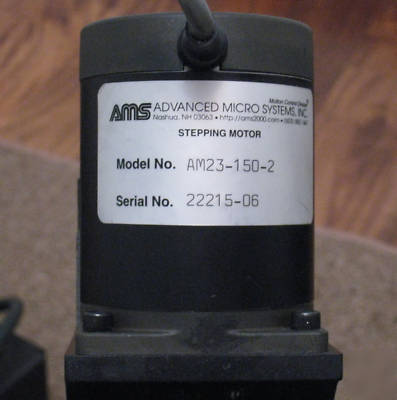

* Each of the 3 slides is manipulated by an Advanced Microsystems AM23-150-2 Stepping Motor

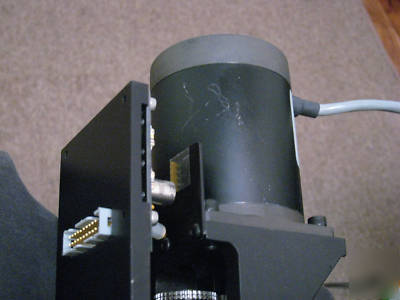

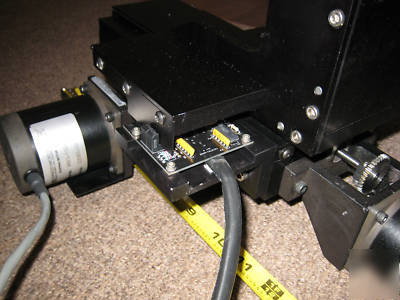

* The long slide with the 10" base has an electronic circuit board and an electric eye apparently to restrict travel up and down a 3" metallic strip.
* The lowermost slide is 5" wide
