> Rigol DS1204B 200MHZ 4CH digital oscilloscope 2GS/s dso
Rigol DS1204B 200MHZ 4CH digital oscilloscope 2GS/s dso

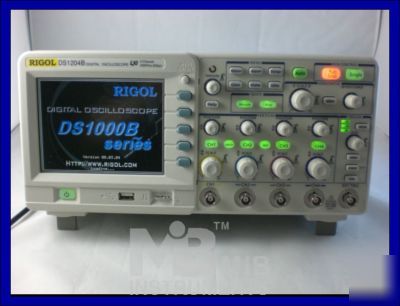

RIGOL DS1204B 200Mhz 4CH Digital Oscilloscope 2GS/s DSO
Product Dimensions: Weight: 3 kg
Width Height Depth 325mm 159mm 133mm Application 1. Design and Debug
2 GSa/s(half channel*),1 GSa/s(each channel)
16 kpts(half channel), 8 kpts(each channel)
* half channel means only one channel from CH1 and CH2 can be chosen or from CH3 and CH4
2. 2 GSa/s Real-time Sample Rate and 50 GSa/s Equivalent-time Sample Rate
3. Memory Depth: 16 kpts (half channel), 8 kpts (each channel)
5. 5.7 TFT QVGA (320 240) with 64K color LED backlight display with power save mode
6. Advanced trigger modes including Edge, Video, Pulse Width, Alternate and Pattern trigger across 4 analog channels 7. Adjustable trigger sensitivity: Effectively filter noise from trigger signal and avoid false trigger
8. Built-in USB Host and USB Device to support USB flash drive, PictBridge printers and direct system upgrades
9. LXI Class C certified LAN Ethernet connectivity standard
10.Backlight Keys, Intuitive user interface, Menu and in-scope help available in Chinese and English
16 kpts half channel , 8 kpts each channel
2 GSa/s half channel , 1 GSa/s each channel
Edge, Video, Pulse Width, Alternate, pattern trigger across 4 analog channels
All Inputs 1M ||18pF 300Vrms Max CAT I
Manual, Track and Auto Measure modes.
Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Time Delay A B, Time Delay A B, Phase Delay A B,- Phase Delay A B
USB Device, dual USB Host, LXI-C compliant LAN
5.7 TFT QVGA(320 240) with 64K color LED backlight display
AC:100-127V,45Hz-440Hz;100-240V,45Hz-65Hz. 60VA Max
