Polamco model #4 vertical mill

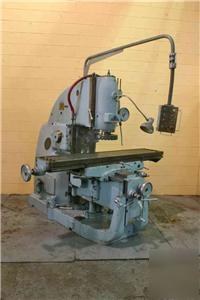

POLAMCO MODEL #4 VERTICAL MILL
SERIAL ............................. 0980-04-69
MODEL .............................. FYA41M
YEAR NEW ........................... 1982
AREA OF TABLE ...................... 78 X 15-3/4
SPINDLE SPEEDS ..................... (21) 28 TO 1300 RPM
LONGITUDINAL FEEDS ................. (32) 1/2 TO 42 IPM
CROSS FEEDS ........................ (32) 3/8 TO 31-5/8 IPM
VERTICAL KNEE FEEDS ................ (32) 1/4 TO 20 IPM
VERTICAL RAM FEEDS ................. (16) 1/4 TO 80 IPM
LONGITUDINAL TRAVEL ................ 41-3/4
CROSS TRAVEL ....................... 14-3/16
VERTICAL KNEE TRAVEL ............... 13-13/16
VERTICAL RAM TRAVEL ................ 5-1/2
DISTANCE SPINDLE NOSE TO TABLE ..... 0 MIN, 20 MAX
DEPTH OF THROAT .................... 18-1/2
TAPER IN SPINDLE ................... #50 NS
RAPID TRAVERSE ..................... 99 IPM
SPINDLE MOTOR, HORSEPOWER .......... 15
