> Nsf electrical rotary solenoid 24 step unidirectional
Nsf electrical rotary solenoid 24 step unidirectional

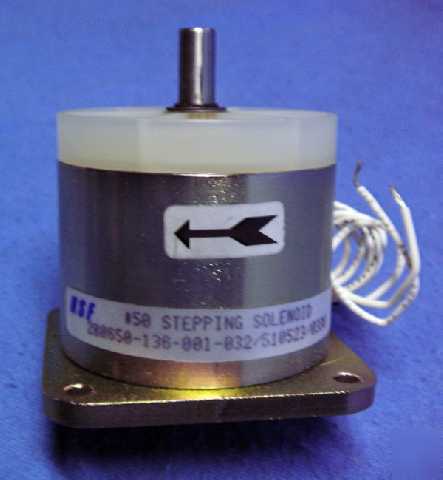

NSF ELECTRICAL ROTARY SOLENOID 24 STEP UNIDIRECTIONAL NEW
NSF ELECTRICAL ROTARY SOLENOID 24 STEP UNIDIRECTIONAL
Stepping Solenoids are available in 12, 18, 24 and 36 position designs, with uni-directional and bi-directional options.
Known for their high torque-to-size ratio, the key to their superior performance is the exclusive tooth clutch drive. It has a positive action, self-locking drive that contributes to a greater usable torque output.
For friction loads the clutch provides a positive grip (no slip) when driving intertia loads. The drive also acts as a built-in electro-mechanical clutch brake to eliminate the natural tendency of overdriving at the end of step.
Torque is further increased by the incorporation of a spring loaded ball detent, accurate to 1 , nonaccumulative.
This accuracy provides near perfect alignment of the internal inclined ball race assuring consistently high starting torque.
All models have a minimum life expectancy of
10,000,000 steps. For bi-directional models this means 10,000,000 steps in each direction.
All internal parts are permanently lubricated and enclosed for environmental protection and maintenance-free operation.
Foot or flange mounts are available to make mounting to your equipment an easy operation. If flange mounting is used for bi-directional models, special consideration should be given to securing both sections of the stepping solenoid if high intertia loads are to be positioned.
