Altera usb blaster fpga cpld compatible jtag cable
Altera USB Blaster compatible FPGA CPLD JTAG cable
We are FPGA/CPLD experts in all programmable device development. Purchasing JTAG cable from us has following advantages:
* Full compatible with Altera program cable USB-Blaster Rev C.
* Better anti-static capacity - more than 1500V.
* Support the target board voltage of 1.2V ~ 5.V
* Lead-free manufacturing process, in line with the standards RHOS
* Contract service for FPGA/CPLD design, custom test/debug tools design, and communication/DSP algorithm development
* More products. Please see the end of the ad for details.

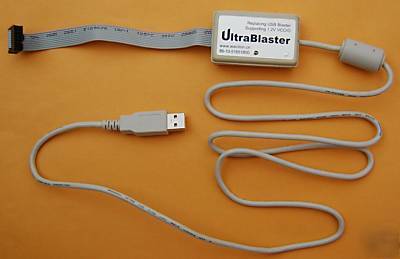

* The UltraBlaster, a USB download cable, is a 100%-compatible drop-in replacement for Altera USB-Blaster programming cable (specifically: USB-Blaster II, Rev. C, the most current version, refer to http:// /literature/ug/ug_usb_blstr.pdf).
The UltraBlaster download cable allows to program and configure Altera devices.
Specifically, it allows do the following:
* Download configuration data to FPGA devices:
* Stratix II, Stratix GX, and Stratix family of devices
* Cyclone II and Cyclone family of devices
* APEX II and APEX 20K family of devices
* FLEX 10K, FLEX 10KE, FLEX 10KA, FLEX 8000 and FLEX 6000 family of devices
* Download configuration data to User Flash Memory (UFM) devices:
* MAX II family of devices
* Download configuration data to EEPROM-based devices:
* MAX 9000, MAX 7000S, MAX 3000A, MAX 7000B and MAX 7000A
* Perform in-system programming of advanced configuration devices:
* EPC2, EPC4, EPC8, EPC16, and EPC1441 devices
* Perform in-system programming of serial configuration devices:
* EPCS1, EPCS4, EPCS16, and EPCS64 devices
* Communicate with and perform in-system debugging:
* Nios II soft core processor
The UltraBlaster download cable supports target systems using 5.0 V TTL, 3.3 V LVTTL/LVCMOS, and single-ended I/O standards from 1.2 V to 3.3 V.
The UltraBlaster is powered directly from the host USB port and the target system without the need for additional external power supply.
Because the UltraBlaster is a 100%-compatible drop-in replacement for Altera USBBlaster programming cable, any of the following software packages supporting USBBlaster also recognize UltraBlaster:
* Quartus II software version 4.0 or later (for development, device programming, and configuration)
* Quartus II Programmer (standalone version for programming and configuration)
* Quartus II SignalTap II Logic Analyzer (standalone version for logic analysis)
NOTE: There is no need to install any drivers other than those provided with the software packages for the USB-Blaster.
* The UltraBlaster is supplied with an 8-in (20-cm) detachable 10-lead board-connector cable. The cable is equipped with a standard 10-pin keyed female socket connector at each end providing an easy way to detach and replace the supplied cable with custom board-connector cables for applications requiring specific board connectors.
* We provide 7-day (upon delivery) return and money back guarantee if you are not satisfied with our products.
* We provide 6 month warrantee on the products we sold. We will either replace or fix without your cost.
***************************************************************************************************************************************
We also have another debug tool -UART-Debugger for serial port debug. UART-Debugger is a semi-duplex debug tool which monitors communications between the control device and the target device for development of GPS and GSM products. UART Debugger provides two pairs of serials ports which accommodates all the debug needs.
Usage model: Monitor device (debugger s computer) is connected to USB port. Control device (micro-controller, DSP, FPGA, etc) connected to one RS-232C COM or TTL COM. Target device (GPS or GSM module) is connected to another RS-232C COM or TTL COM. Monitor device monitors data on the serial bus and inject data if it is necessary.
Transmission rate: More than 1M bps
Interface: RS-232C COM1 and COM2.
Anti-static capacity: More than 2000V
OS: Windows 98, Windows 2000 and Windows XP.
