Hot foil stamping plate die making machine&material

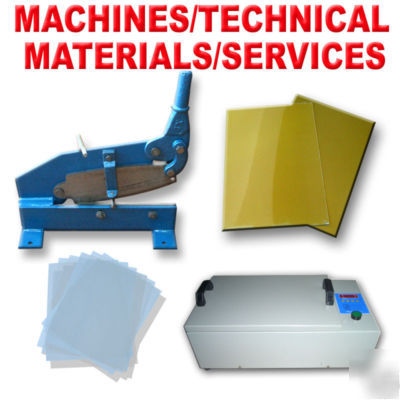

Hot Foil Stamping Transfer Press Plate Making System
Hot foil stamping utilizes heat, pressure and time to transfer color from a foil to an object. A photo-etched die is used to bond the adhesive coat of the hot stamping foil to the surface of the object that is to be decorated. What sets hot foil stamping apart from any other method of printing is it's ability to apply a shiny design on paper, vinyl, textiles, wood, hard plastic, leather, and other materials, a brilliance that cannot be duplicated with ink, so foil stamping is employed in a diverse range of consumer and industrial applications.
Plate or die making is the key of hot foil stamping. Water soluble photopolymer plate is currently the simplest, fastest and least cost plate making method.
* Digital Auto-Off timer with Auto-Repetition
* 12"x7.7" exposure capacity
* Heavy duty extruded steel frame
* User-friendly desktop design with long-term life span
* Exposing area: 12"x7.7"(310x200mm)
* Light power: 72W four 18W UV fluorescent bulbs)
* Machine size: 19.7"x11"x6.3"(500x280x160mm)
* Package dimensions: 22.4"x13"x8.9"(568x333x225mm)
* Cutting thickness: Max 1/8"(0.32cm)
* Cutting length: 9.8"(25cm)
* Machine size: 22"x5.5"x11"(56x14x28cm)
* Package dimensions: 17.3"x12.2"x6.7"(44x31x17cm)
* Net weight: 26.2Lb(11.9kg)
This photopolymer plate has two layers: the upper layer is photopolymer plate about 0.03 inch thickness, part of it will solidify after UV exposure, while the rest part without exposure can dissolve in the water. The lower layer is aluminum plate, about 0.008 inch thickness.
* High quality water soluble photopolymer resinic plate made in Japan
* High thermal conductivity and pollution free
* Heat resistant up to 302-320F (150-160 )
* Simple plate making process in short time
* Size: 8" 1/4 X 11" 3/4 (210mm X 297mm)
* Net weight: 0.51Lb(0.23kg)
* Printable Transparent Film
* Size: 8" 1/4X11" 3/4(210mmX300mm) A4
* Printers: All Inkjet/Laser Printers
* Color: Clear (Transparent)
Hot Foil Stamping Video Instruction
* 1 set of metal plate cutter
* 2 pcs of Japanese macromolecular photopolymer plate
* 20 sheets of inkjet transparent films
