12" swg 32" cc lizzini 80-P3 od grinder, power otw dres
12" Swg 32" cc Lizzini 80-P3 OD GRINDER, POWER OTW DRES

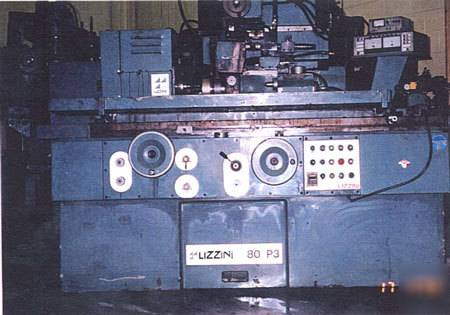

12" Swing 32" Centers Lizzini 80-P3 OD GRINDER, POWER OTW DRESSER,, AUTO CYCLE
12" X 32" LIZZINII CYLINDRICAL GRINDER
w/POWER AUTOMATIC "BEHIND-THE-WHEEL" DRESSER
MODEL: RUL 80-P3 S/N: 35/1 NEW: 1980
MAXIMUM DISTANCE BETWEEN CENTERS .................. 32"
MAXIMUM SWING OVER TABLE........................... 12"
TABLE TRAVERSE SPEEDS, INFINITELY VARIABLE .. UP TO 240"
MAXIMUM LONGITUDINAL STROKE ...................... 34.8"
MAXIMUM SWIVEL OF TABLE.................... +/- 8 DEGREE
SPEED RANGE (8) ........................... 50 - 500 RPM
CENTER TAPER ..................................... #4 MT
SWIVEL .................................. 0 - 90 DEGREES
CENTER TAPER...................................... #4 MT
RAPID ADVANCE STROKE ............................... 1.8"
MANUAL INFEED PER HANDWHEEL REVOLUTION ............ 0.02"
AUTO INFEED ............................. 0.0001" - .001"
AUTO PLUNGE INFEED ........................ 0.01" - 0.24"
STANDARD WHEEL SIZE ....... 20" O.D. X 4" WIDE X 8" HOLE
WHEEL SPEED .................................. 1,150 RPM
WHEELHEAD SWIVELLING CAPACITY ............... 45 DEGREES
APPROXIMATE WEIGHT ............................ 8600 LBS
POWER AUTOMATIC "BEHIND-THE-WHEEL" DRESSER
HYDRAULICALLY ACTUATED RAPID WHEELHEAD ADVANCE &
16 H.P. 3/60/230-460 VOLT WHEELHEAD DRIVE MOTOR
** ORIGINAL PAINT- VERY GOOD CONDITION **
