New faulhaber dc servomotor motor+gearhead 30/1 592:1
NEW Faulhaber DC ServoMotor Motor+Gearhead 30/1 592:1

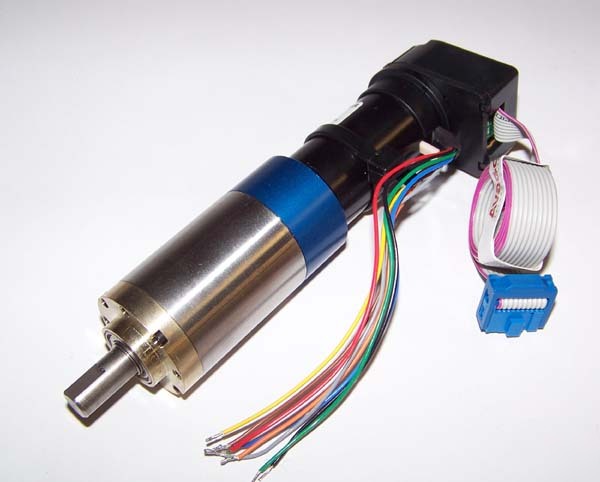

This is a New Faulhaber DC ServoMotor Motor+Gearhead 30/1 592:1. This item is used in a wide variety of small industrial machinery. Cosmetically, it is new and flawless. The photos show a typical item. Only what is shown in the photos is included.
* Housing material metal: Metal
* Geartrain material steel 1): Steel
* Recommended max. input speed for continuous operation: 4000 RPM
* Backlash, at no-load: 1
* Bearings on output shaft ball bearings: Ball bearings
* Shaft load, max radial (15 mm from mounting face): 150 N
* Shaft press fit force, max. 200 N
* Shaft play radial (15 mm from mounting face): 0,03 mm
* Operating temperature range: 30 + 100 C
* Nominal Reduction Ratio Range:592:1
* Weight without Motor: 235 Grams
* Max Continuous Output Torque: 4,5 Nm
* Terminal resistance, phase-phase: 2,1 Ohms
* No-load current (with shaft 3,0 mm): .184A
* Friction torque, static: 1.00 mNm
* Friction torque, dynamic: 3,5 .10-5 mNm/rpm
* Back-EMF constant: 1026 mV/rpm
* Torque constant: 9,8 mNm/A
* Current constant: 102 A/mNm
* Slope of n-M curve: 209 rpm/mNm
* Terminal inductance, phase-phase: 180 H
* Mechanical time constant: 14 ms
* Angular acceleration: 171 .103rad/s2
