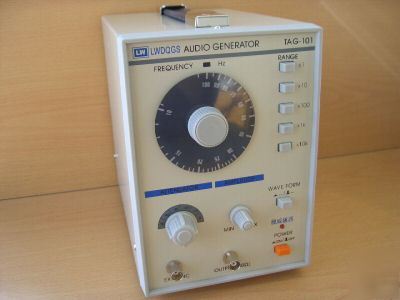

New 1MHZ audio signal generator, hi fi/amplifier test
"10Hz to 1MHz Audio Signal Generator"
Engineer , Electric Lab, Production Line,HI FI / Amplifier test "
WIDE FREQUENCY / OUTPUT LEVEL RANGE!!!
HIGH STABILITY AND ACCURACY !!!
. Frequency range from 10Hz to 1MHz selectable in 5 ranges;
. Selectable sine wave or square wave output;
. More than 5Vrms at no load / 2.8V on 600 ohm loading ( sine wave );
. Output level can be adjusted by 10dB-step, 6 range attenuator and a level adjuster;
. Synchronizing input terminal;
. Output Frequency Range into 5 Ranges
- Output voltage: >5V rms adjustable;
- Distortion: 0.1 to 0.5% or less upto 500KHz;
- Output flatness: +/-1dB ( ref to 1KHz );
. Square Wave characteristics:
- Output voltage: <=10V p-p adjustable;
. External synchronization characteristics:
- Range +/-3% of oscillated frequency;
- Input impedance: Approx. 10K;
- Impedance: 600 ohms ( +/-10% );
- Attenuator: 0dB / -10dB / -20dB / -30dB / -40dB / -50dB in 6 steps ( accuracy + 1dB at 600 ohm load );
. Power Requirement : 220V or 110V to 220V AC adaptor
. Dimension: 142 x 233 x 197 mm;
. Accessories : Power cord / test clip / English Instruction Manual
