> Bogen tps-4 TPS4 control panel telephone multi graphic

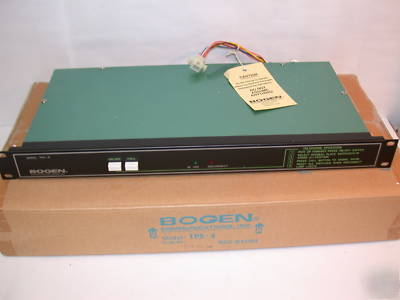

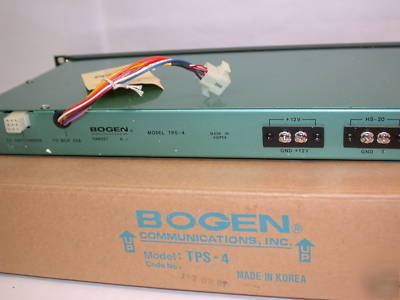

Bogen tps-4 TPS4 control panel telephone multi graphic
TELEPHONE OPERATION CONTROL PANEL
CPP Handset Communication Option
The Bogen CPP Handset Communication Option provides
for control center-to-classroom and classroom-toclassroom
phone communications. The option uses the
Bogen Model TPS4 Control Panel and Bogen HS20-Series
1C or HS202C). The TPS4 panel provides
an on/off switch which disconnects the normal intercom
function of the Bogen Model MCP35A; a call button to
transmit a call tone to the selected speaker; an in-use
LED; and a disconnect function which lights an LED and
sounds a tone to remind the operator to reset the control
panel once classroom-to-classroom communication
Architect and Engineer Specifications
The Bogen CPP Handset Communication Option shall be provided. It shall consist of the Bogen Model TPS4
Control Panel, the Bogen HS20-Series handset(s), and Bogen Model PCMPS2 power supply. The control panel
shall be rack-mountable and shall interconnect with the Bogen Model MCP35A Master Control Panel and room
selector panel(s). The TPS4 shall provide an on/off switch to disconnect the intercom function of the MCP35A,
a call button to activate a call tone at the selected speaker, an in-use LED, and a disconnect function which shall
alert the operator when communication is completed.
IF YOU NEED MORE THEN THE QUANTITY LISTED, PLEASE DROP US A NOTE, WE MIGHT HAVE MORE.
IF THE UNIT IS SUPPOSED TO COME WITH BATTERIES, PLEASE ASSUME THEY WILL NOT OR NEED TO BE REPLACED
IF YOU HAVE A QUESTION ABOUT THIS PRODUCT, PLEASE EMAIL US AND WE WILL DO WHAT WE CAN TO ANSWER IT QUICKLY AND ACCURATELY.
*PLEASE SEARCH OUR STORE TO SEE MORE SECURITY PARTS*
OUR EMAIL ADDRESS IS: IDEALTRADE@AOL.COM
WE ARE NOT AUTHORIZED DEALERS OF ANY OF THESE MANUFACTURES. WE CANNOT GUARANTEE THAT ANY WARRANTY WOULD APPLY. THAT WOULD BE AT THE DISCRETION OF EACH INDIVIDUAL MANUFACTURE.
WE ARE NOT SECURITY SYSTEM EXPERTS. WE ARE LIQUIDATORS WHO HAVE PURCHASED A LARGE QUANTITY OF SECURITY SYSTEMS AND ACCESSORIES.
WE KNOW LITTLE OUTSIDE OF MODEL NUMBER AND COST BUT WE CAN FIND ADDITIONAL INFORMATION ON THE NET AND IN THE INSTRUCTIONS.
WE WILL CERTAINLY NOT BE HELPFUL WITH ANY INSTALLATION QUESTIONS OR PROBLEMS.
