> pall - "advanta"- #ALT12G5221 - s/s filter holder- 22"
pall - "advanta"- #ALT12G5221 - s/s filter holder- 22"

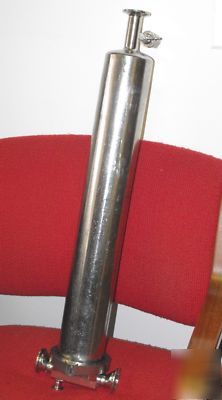

Pall Trinity Micro Corp. - Stainless Steel Filter Holder, or Housing, with a Catalog or Part #ALT12G5221. This is a used, Pall Filter Holder, with a Code 7 mount for the filters (I believe). It is in very good condition, with marked service conditions, of 14.5 to 150 psig, and a Max. Temperature of 284 Deg.F., with a Volume of 3.60 Liters. It has a top, with a 1-1/2" Tri-Clover Style, Sanitary fitting for an Inlet and Outlet, and on the bottom of the filter housing is also a 1-1/2" Tri-Clover Style Sanitary fitting, also usable and marked as an Inlet. Both fittings on top have a thru-bore of roughly a nominal 1", as does the one on the bottom. On the removable top, there is also a 3/4" Sanitary fitting on the Inlet side, and on the bottom Inlet throat of this housing is a barbed, valved fitting, as pictured. These fittings can be fitted for use as vents, or drain fittings, depending on the mounting. The housing has an overall length of about 28", and has a cylinder length of about 23".
