> Antenna matching unit for center loaded mobile
Antenna matching unit for center loaded mobile

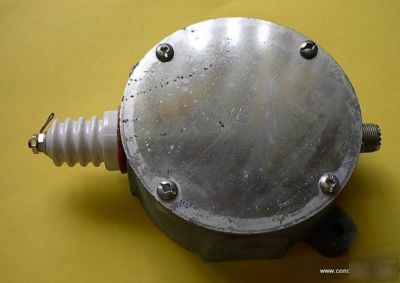

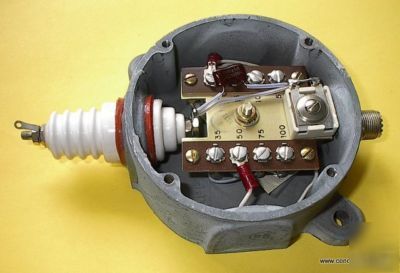

The single channel antenna matching unit has been designed to provided impedance match between a center loaded whip antenna and the output of transceiver. Including installation and tuning procedure . Die cast box 4 -1/2" for external installation with SO-239 connector and HV insulator. Math impedance between 0 to 200 ohms. Works from 1.8 to 30 MHz at up to 200 Watts PEP.
