GP126 phl-26D pdq passage lock special for business

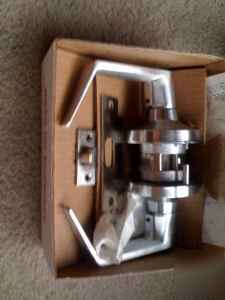

Brand new in the box PDQ lock. Special for building stairwells doors, hospitals, schools and all other kind of business GT series 126. Lock is for passage or closet. Latch bolt operated by lever from either side at all times. Price for this lock is around $300. Very strong and very good quality. Our asking price is $160.Very good deal. The picture on the left is from website PDQ and shows lock with the key. This lock GT 126 is with no key .But looks the same like in the picture.... Price is negotiable.......If you have any questions just EMAIL TO ME...
GT PASSAGE 126 PHL 26D DESCRIPTION:.
1-3/4" to 2 1/4" thick. Factory adjusted for 1-3/4".
Fits standard 161 door prep. Through-door thru-bolting.
Heavy duty zinc diecast, investment cast and chromated cold rolled steel mechanism. Billet steel spindles.
Stainless steel, wrought brass, or wrought bronze. 2-1/4" x 1-1/8". Beveled 1/8" on 2".
4-7/8" x 1-1/4"(ASA). "T" or "FL" Strike optional. Stainless Steel, wrought brass or wrought bronze.
9/16" Throw. Adjustable front for flat or beveled doors.
PHL, BSN or MIA levers are solid zinc diecast. 41 lever rotation. Wrought brass roses. Concealed screws.
Available for all keyways of most major manufacturers
Available for all keyed functions 6 or 7-pin.
Brass 6-pin insert cylinder keyed to 5-pins
Can be MK, CMK, GMK. Available Zero bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing master key systems of other manufacturers.
Listed for "A" label (3 hour) single swing doors(4'0" x 8'0").
Complies with ANSI A156.2, Series 4000, Grade 1. Meets all applicable accessibility requirements of the ADA. U. L. Listed. BHMA.
