New 16" swg 40" cc gmc cnc-1640F cnc lathe, fanuc 0I-ma

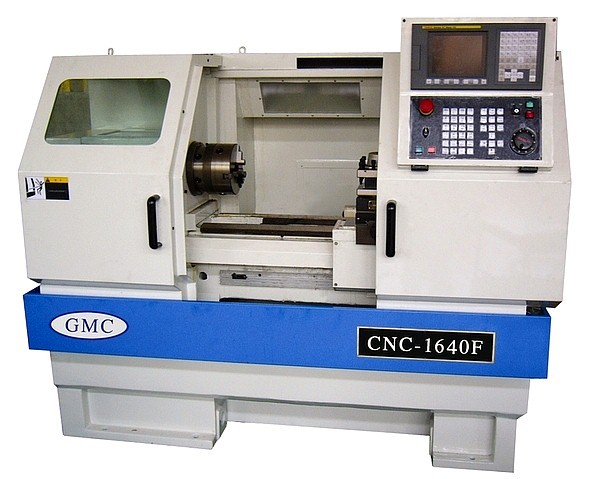

16" Swg 40" cc GMC CNC-1640F NEW CNC LATHE, Fanuc 0i-Ma
16" Swing 40" Centers GMC CNC-1640F NEW CNC LATHE, Fanuc 0i-Mate, 6 HP, Constant Surface Speed
Model: CNC-1640F Made in Taiwan
Easy-to-use FANUC Oi-mate CNC control
CNC programmable spindle speeds from 45 to 2,500 rpm
CSS - Constant Surface Speed Programming
Large spindle bore 2-1/16 , D1-6
One-piece solid cast iron machine base
Heavy Duty guideway width 11 13/16
Max. swing over cross slide: 7-1/16
Max. turning diameter over bed: 11-3/4
Taper of spindle center: M.T.# 6
Spindle speeds, CNC programmable: 45 2,500 rpm
Diameter of tailstock quill: 2 -1/8
Max. travel of tailstock quill (manual): 4-3/4
Taper of tailstock quill center: M.T. # 4
Auto turret toolpost: 4 positions
Max. tool size for auto turret toolpost: x
Max. travel for Z axis: 31-1/2
Main motor: 6 HP, 220V , 3 or 1 phase
Coolant pump: 1/8 HP , 220V , 1 phase
Net Weight, approx.: 5,350 LBS
Overall Dimensions, LxWxH: 85 x 50 x 66
10 manual 3-jaw chuck with set reversible jaws
Electric automatic turret 4-position toolpost
Handwheel (Manual Pulse Generator) for both X & Z axis movement
8 wedge-type hydraulic 3-jaw chuck (non thru hole# D6-3H08)
One year service certificate including labor warranty for FANUC
One day on-site training for FANUC 0i-Mate CNC control
