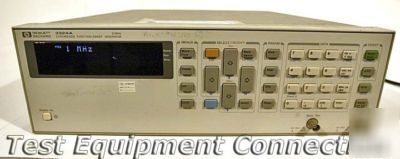

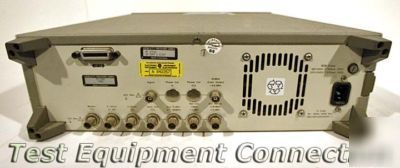

Agilent hp 3324A /001/ function generator
Photobucket The 3324A synthesized function/sweep generator provides synthesizer performance and multi-segment sweep for applications such as speed sensors. Additionally, multi-phase signals can be set up, as variable-phase and master/slave capabilities can be used together.
Functions: sine, square, triangle, negative & positive ramps, aux. TTL clock, dc
Sweep: LOG, LIN, multi-interval, phase continuous
Frequency range: 1 mHz to 11 kHz (triangle, ramps), 11 MHz (square), 21 MHz (sine)
Resolution: 1 mHz <1 MHz, 100 mHz >1 MHz
Frequency accuracy: ?5 ppm of selected value
Phase offset - phase lock modes: resolution: 0.1?, range: ?719.9?
Output amplitude: 1 mVpp to 10 Vpp in eight 1-3-10 sequence ranges (50 Ohm into 50 Ohm)
Output resolution: 0.03% of full range
