Polybutylene terephthalate compound pbt ge valox 420
Selling price: $1.60/lb, total 55.115 lbs bag

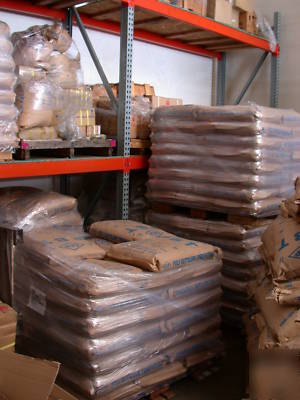

Gromax/CCP Engineering Plastics Polybutylene Terephthalate Compound Resin Model: PBT-3030-104 is equivalent to GE Valox 420 for injection molding applications. We have approxmiate 8000 lbs. in stock. If you need large quantities, please call (***)-833-1199 or ****@gromax-usa.com for more information.

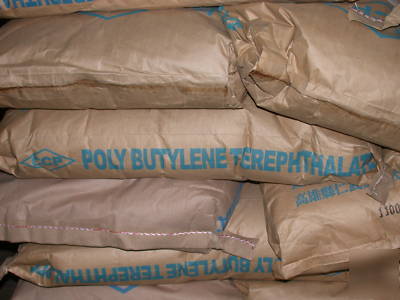

Packaging: 25kg / 55.115lbs paper bag
Technical Data of PBT 3030-104
PBT 3030-104 is a glass fiber 30% reinforced injection molding grade.
1)excellent electrical property
2)excellent temperature resistance, high heat distortion temperature.
3)excellent mechanic and chemical property
7)high resistance to fuels, oil, fats and many solvents
Cylinder temperatures: 240-270 0c
Nozzle temperature: 260-270 0c
Mold temperature: 40-120 0c, suitable temperature 60-80 0c
Screw speed: 60-120 rpm, to be chosen in such a way that
plasticizing time is just within cooling time.
Pressure Injection pressure: 500-1200 kg/cm2
Holding pressure: 300-800 kg/cm2
Mold shrinkage: 1.6mm hickness horizon is
0.2-0.5% and vertical is 0.8-1.4% under the test
Moisture pick-up from ambient air should be avoided. Keep hopper properly closed.
Property Value Unit Test method: ASTM
Coef. of linear thermal expansion 3 10-5 cm/cm0c D696
Heat deflection temperature under load
Moisture absorption (24h) 0.04 D570
Flammability acc. to UL94, 0.8mm thickness HB - UL94
Tensile strength 1200 kg/cm2 D638
Flexural strength 1850 kg/cm2 D790
Flexural modulus 80000 kg/cm2 D790
Izod impact strength notched 1/4 8.5 kg.cm/cm D256
Dielectric strength, 2mm thickness 20 KV/mm D149
Volume resistivity 1015 -cm D257
Surface resistivity 1013 D257
Dielectric constant 3.5 60Hz D150
Dielectric dissipation factor 0.001 60Hz D150
For MSDS information, please visit our web-site
gromaxchemical.com/PBT/msds.html
