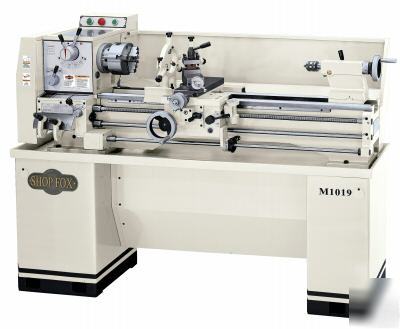

Shop fox® M1019 13-1/2" x 40" gear head lathe w/ stand
M1019 - SHOP FOX 13" X 40" Lathe
We are proud to introduce the Model M1019 Gear Head Lathe for the smaller shop! Heavy duty construction and precision with every feature, this lathe includes a 2 HP motor, and 8 speeds, 3-and 4-jaw chucks, faceplate, 4-way turret tool post, live and dead centers, plus many other accessories to tackle those jobs you have always wanted to do. Add on the optional taper attachment for additional convenience. For the job shop looking for some higher production capability, the optional quick change collet attachment is also a great time saving addition!
* Cast iron construction throughout
* Induction hardened bedways
* Flame hardened headstock gears
* Tapered roller and ball bearings
* Jog button and emergency stop
* Motor 2 HP, 220V, single-phase, TEFC, 11.9 Amps, 60 Hz, 1750 RPM
* Swing over cross slide: 8"
* Maximum carriage travel: 35"
* Maximum tool size: 1/2" x 1/2"
* Range of longitudinal feeds (inches/rev.): .0036" - .1005"
* Range of cross feeds (inches/rev.): .00123" - .0345"
* Tailstock barrel taper: MT #3
* Tailstock barrel travel: 3-1/2"
* Range of speeds: 78, 128, 210, 330, 510, 830, 1360, 2100 RPM
* Feed rate range: .0036" - .1005"
* Thread range (inches): 4 TPI-112 TPI
* Thread range (metric): 0.2 - 6 mm
* Height with stand: 52-1/2"
* Height of center line: 45-1/2"
