> New SOM2000D operation microscope/eye surgery/ brand /
New SOM2000D operation microscope/eye surgery/ brand /

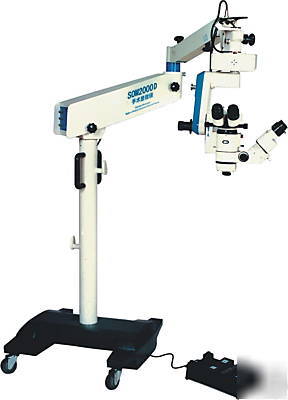

SOM2000D Operation Microscope / Surgery / Brand New / NR
SOM2000D is an advanced binocular operation microscope designed for all types of ophthalmic operations from cataract to vitreous surgeries.
Two types of binoculars are available: one with 45 fixed and the other variable Inclination adjustable from 45 to 90 , offering a more comfortable observation.
Fine focusing knob is under the bottom of assistant binocular. The image of the assistant microscope can be focused independently from the main microscope, to avoid the different diopters.
Germany optics gives the surgeon a bright, balanced, and fine image.
Apochromatic technology used in the optical design, ensures coaxial light focus and makes a clearer field of view.
Microscope head and arm can be moved freely by using the spring balanced system. Locking device of the microscope arm can keep patients away from the lens in a safe distance.
Independent electrical control box can diagnosis the system automatically in the process of repair or maintenance.
Optional accessories: Teaching Tube, Filming Device and Operation Microscope Image System.
Magnification of Main Microscope
4.6 27 continuously adjustable by motorized / manual control
Magnification of Assistant Microscope
Adjustable Interpupillary Distance
50mm 75mm (main microscope 45mm 80mm)
12V/100W,cold reflection halogen bulb for medical use
6 +0 coaxial illumination of cold light source, 26 oblique illumination
80000lx,1 9level,panel controlled
60000lx,1 9level, panel controlled
Speed for X/Y Movement and Range
AC220V 22V/50Hz 1Hz AC110V 11V/60Hz 1Hz
AC250V T4.04.0444.0000A AC1250V T8.0588.0A
A precise, dependable, and reliable machine!
475 Pounds in 5 cartons, 0.756 cubic meters
Other manufacturers sell similiar auto refractor for over 30000$!
Q: How can you pay for the item? A: We accept ACH, bank wire, or company check only for this item. You must wait 5 business days for business check to fully clear!
