Quadtech (genrad) 7600 lcr analyzer, 10 hz - 2 mhz

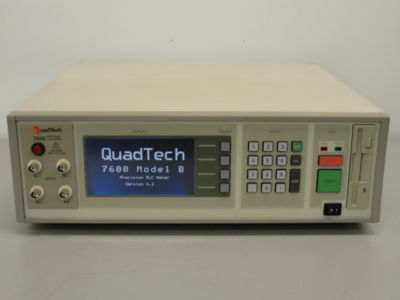

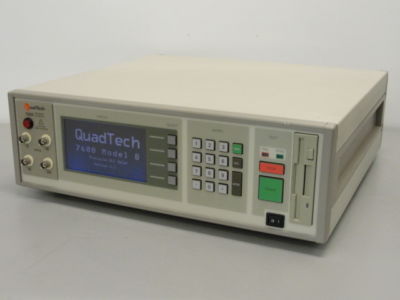

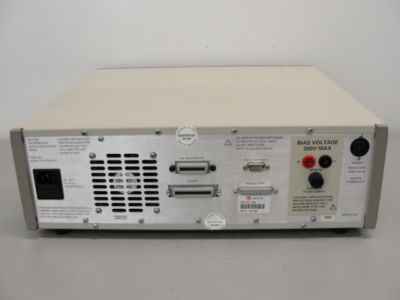

Quadtech (GenRad) 7600 LCR Analyzer10 Hz - 2 MHz
The Quadtech 7600 LCR Meter features:
Automatic Test Sequencing: Run up to six different tests in sequence with a single push of the start button. Each test can have different test conditions and limits.
Swept Measurements: Fast and accurate swept parameter measurements, graphical or tabular, for verification of component and material response to changes in ac test frequency, ac test voltage or ac test current, without the need for complex programming or an external controller.
Load Correction: Substantially improves instrument accuracy by performing measurements on a known standard and applying the correction to subsequent measurements. Ideal for repetitive testing of identical devices at like test conditions.
Automatic Calibration Procedure: The Quadtech 7600 can be calibrated without returning the unit to the factory using the NIST traceable QuadTech Calibration Kit, reducing down time and calibration costs. Easy to Use: Large LCD graphics display and user friendly menu driven interface allows the 7600 to be put on line quickly, providing useful measurements by operators with little to no training. The 3 disk drive allows for transfer of test results to PC for data analysis.
Features, specifications and highlights of the Quadtech 7600 LCR Meter include:
* Wide Frequency Range: 10 Hz - 2 MHz
* The graphical sweep function of Z vs. frequency, voltage or current
* A lower cost alternative to the HP Agilent Model 4284A LCR Meter
* Measures 14 Impedance Parameters (2 simultaneously)
* 0.05% Basic Measurement Accuracy
* 289,900 Programmable Frequencies from 10Hz to 2MHz
* AC Test Voltage Programmable from 20mV to 5V
* DC Bias Voltage, 2V Internal or 0 to 200V External
* Fast Measurement Speeds up to 40/Second
* Automatic Open/Short Zeroing Eliminates Connection Errors
* High Resolution LCD with 7 Digit Display
* 14 Hi/Lo Sorting Bins for Pass/Fail Testing
* RS-232, IEEE-488, Printer, and PLC Interfaces all Standard
* Results Displayed as Deviation or %Deviation from a Nominal Value
* Constant Voltage Maintained to the Device Under Test
* Ability to Automatically Perform 6 Unique Tests in Sequence
* Keypad Lockout Prevents Changes to the Test Setup
* On site calibration with NIST Traceable Cal Kit
* Programmable Average and Delay Times
*Calibration available upon request!
