New lithonia 70 watt bollard KBR6 70M R5 277 l\ab dna

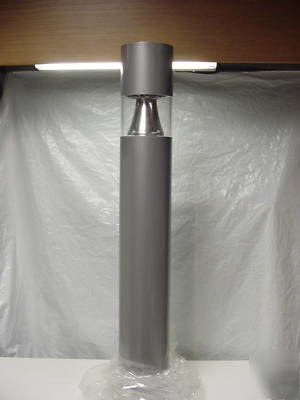

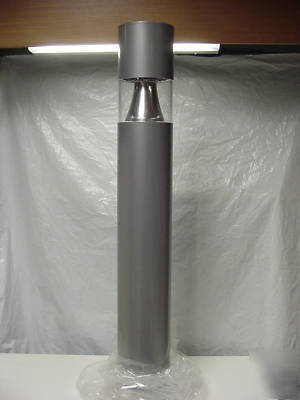

LITHONIA 70 WATT BOLLARD KBR6 70M R5 277 L\AB DNA NEW
Use for walkways, plazas or pedestrian areas. Certain
airborne contaminants can diminish integrity of acrylic.
Acrylic Environmental Compatibility table for suitable uses.
Extruded, one-piece aluminum, 0.125" wall thickness.
Top cover is a weldment of .125" wall extrusion and 0.250" top plate. 42" overall
height standard. Closed-cell EPDM gasketing is included.
Standard finish is dark bronze (DDB) polyester powder, electrostatically-
applied and oven-cured. Other colors available as options.
Hydroformed, fluted, anodized, aluminum upper reflector
combined with spun aluminum, anodized, flared cone is standard. Cylindrical
lower reflectors also available. Lens is clear, seamless 100% virgin
acrylic, 1/4" wall, flush fitting.
High pressure sodium and metal halide are high
power factor ballasts, 100% copper wound and factory tested for reliable
operation. Electrical components are tray-mounted with quick-disconnect
plug and are accessible through bottom of bollard.
Porcelain, vertically-oriented, medium-base pulse-rated socket with copper
alloy, nickel-plated shell and center contact.
Four 1/2" x 11" anchor bolts with double nuts and washers,
UL listed for wet locations. Listed and labeled to comply with
Canadian Standards (see Options).
Architectural Colors (powder finish)6
CSA Listed and labeled to comply
Weight:15.9-26.6 lbs (7.2-12.1 kgs)
Field-installed. Order as separate catalog number.
5 Optional multi-tap ballast (120, 208, 240, 277V).
