Arbiter systems model 1088B gps satellite clock, 8 bnc

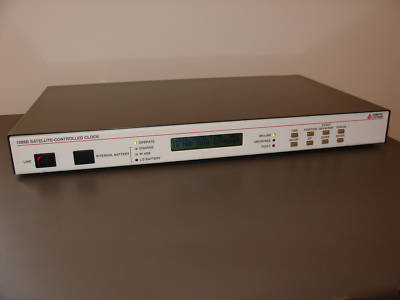

Arbiter Systems 1088B GPS Satellite Controlled Clock
Provides unprecedented performance for precision timing applications. Combining NIST traceable accuracy and ease of use with flexible interface features and options, the Model 1088B offers unparalleled value in GPS clocks. Typical performance is 40 ns when tracking four (or more) satellites. Provides outstanding performance 24 hours/day, anywhere that GPS signals can be received.
UTC/USNO 40 ns receiving four or more satellites (typical), 100 ns receiving a single satellite.
CMOS output signals are synchronized to the 1 PPS output, 50 maximum, IRIG-B modulated, 1 s maximum.
The leading edge of the start bit may be selected to trigger the Event A input.
12-channel receiver, GPS-L1, C/A code (1575.42 MHz), simultaneously tracks up to 12 satellites.
150 seconds from cold start, 40 seconds with almanac <1 month old, 15 seconds with ephemeris <4 hours old
Includes AC power cord and antenna.
User manual here. Technical data sheet here. The 1088B is in current production, and is Arbiter Systems top-of-the-line GPS clock in both accuracy and flexibility. Sells new for $3,500.
Includes 4" diameter GPS antenna with N-type coaxial connector (not shown in picture).
