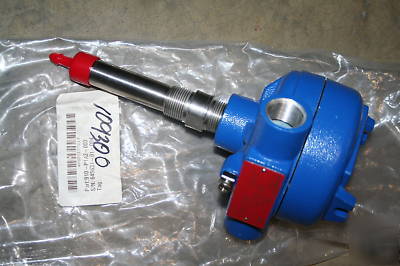

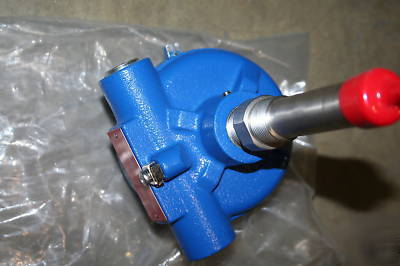

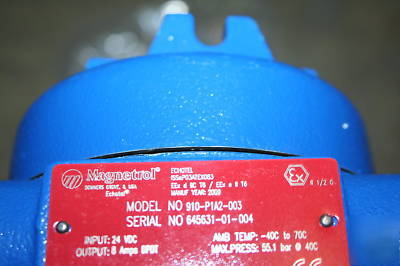

New magnetrol echotel ultrasonic level switch
MAGNETROL ECHOTEL ULTRASONICE LEVEL SWITCH
Measures level within 0.25" (6 mm) from the end of the tip-sensitive transducer gap
10-amp DPDT gold flash or 5-amp DPDT hermetically sealed relay
Surface mount conformal coated electronics
FM, CSA, and ATEX approved for hazardous locations
Variety of mounting options including NPT and BSP threaded, flanges and sanitary connections
316 stainless steel transducer
May be mounted either horizontally or vertically
Compact NEMA 4X/7/9 dual conduit hub cast aluminum electronics housing
Housing: Aluminum sand cast with 3/4" NPT dual conduit, FM, CSA, and ATEX approvals
Transducer Unit of Length: English - length in inches
Process Connection: 1" 150 lb. ASME raised face flange
Input Power: 24 VDC with 10-amp DPDT gold flash relay
Power Consumption: 2.5 VA nominal
Fail-safe: Field selectable high or low
Ambient Temperature: Electronics: -45 to +160 deg. F
Process Temperature: Transducer: -40 to +250 deg. F
Shock: ANSI/ISA-S71.03 Class SA1
Vibration: ANSI/ISA-S71.03 Class VC2
Operating/Non-Operating Pressure: 800/1500 psig
