New fluke 771 milliamp process clamp meter - msrp 499

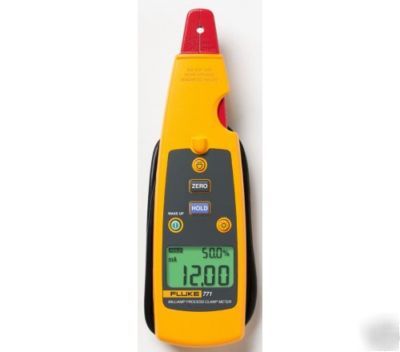

Fluke 771 Milliamp Process Clamp Meter
If needed we can Calibrate for an additional $39.99 a $79.99 service
Don t break the loop on 4-20 mA signal measurements.
Measure 4-20 mA signals without breaking the loop with this new, compact clamp meter for PLC and control systems analog I/O. The detachable clamp with extension cable allows you to take measurements in tight locations, and the built-in spot light illuminates hard to see wires in dark enclosures.
* Measure mA signal for PLC and control system analog I/O
* Measure 4 to 20 mA output signals from transmitters without breaking the loop.
* Count on best in class accuracy of 0.2%
* Measure mA signals with 0.01 mA resolution
* Measure mA signals for PLC and control system analog I/O
* Measure 4 to 20 mA output signals from transmitters without breaking the loop
* Best in class 0.2 % accuracy
* Resolution and sensitivity to 0.01 mA
* Hold function captures and displays changing measurements
* Dual backlit display with both mA measurement and percent of 4 to 20 mA span
* Measurement Spotlight illuminates hard to see wires in dark enclosures
* Detachable clamp with extension cable for measurements in tight locations
* Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
* Automatic power off after 15 minutes and 2 minute automatic off for backlight and spotlight
< 95% @ <30 C, < 75% @ 30 to 55 C
59 x 38 x 212 mm, (2.32 x 1.5 x 8.35 in.)
1 meter drop test (except the jaw)
(2) AA 1.5 V Alkaline, IEC LR6, 20 hours typical
