New atco precision tool co. sine plate sp-36 mint 5"

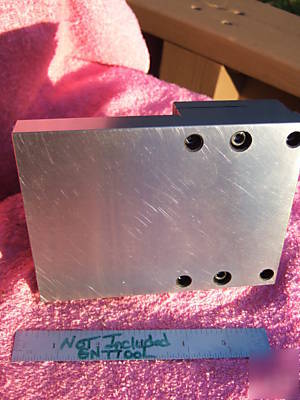

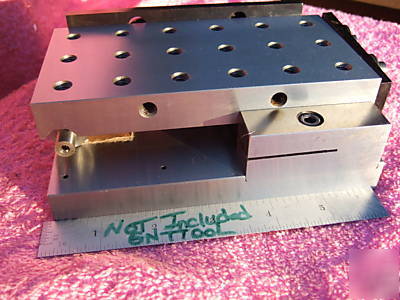

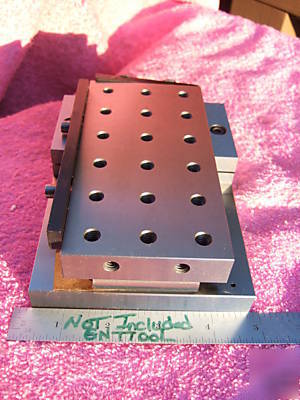

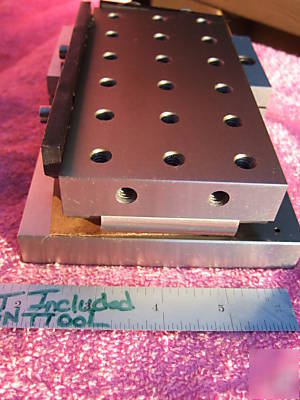

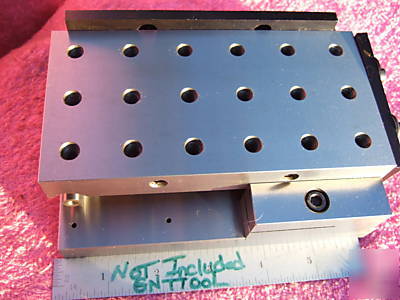

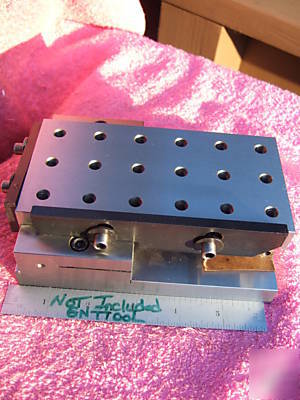

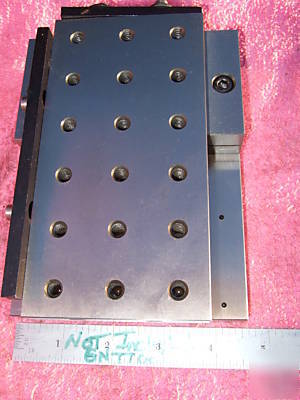

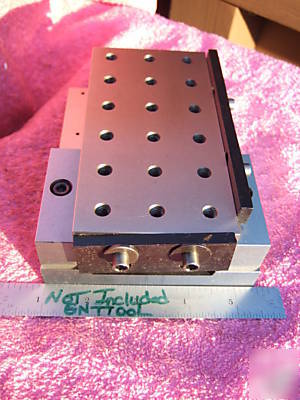

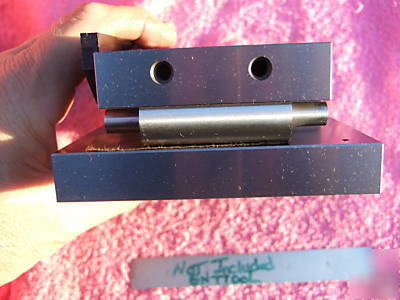

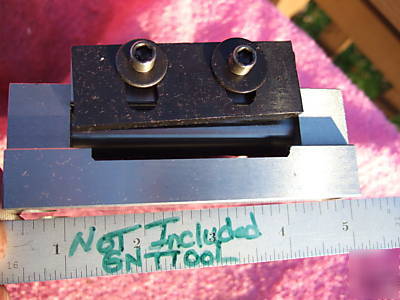

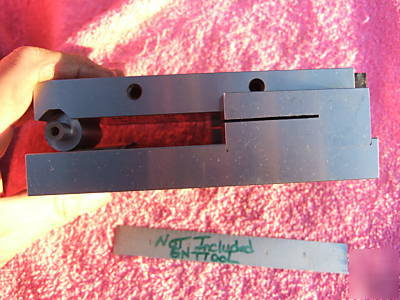

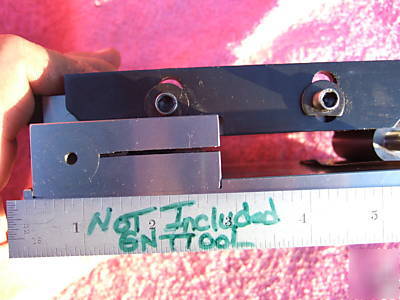

ATCO PRECISION TOOL CO. SP3-36 HINGED SIMPLE SINE PLATE 5.0" BETWEEN CENTERS 3X6 SINE PLATE AS SHOWN. DIRECT FACTORY PURCHASE ALONG WITH MANY OTHER ITEMS! I HAVE ATCO CUBES,MAGNETIC CHUCKS AND SINE PLATES TO BE LISTED. BRAND NEW AND STORED ONLY IN A GERSTENR BOX AND HAS NO MARKS STILL HAS PAINT IN SOME HOLES!!!!!!! SEE PICS. (18) TAPPED 1/4"X20 HOLES AND (8) TAPPED 1/4" X 20 ON SIDES AND ENDS OF TOP PLATE FOR RAIL (2 INCLUDED). BOTTOM PLATE MEASURES 4.48" WIDE X 5.956" LONG WITH THE NEW HINGE LOCKING STYLE! SAVE SOME $$$$ HERE!
* Made of quality steel, hardened to 58-62 Rc.
* Minute angle step .200" built into the gage block roll. Eliminates steps in base plate.
* Two hardened and ground side rails and one locking strap included.
* Large hinge pins for extra strength.
* Tapped holes in top plate 3 x 6" ARE 1/4-20.
Center Distance of Rolls: 5" within .0002"
Parallelism and Squareness: .0002"
