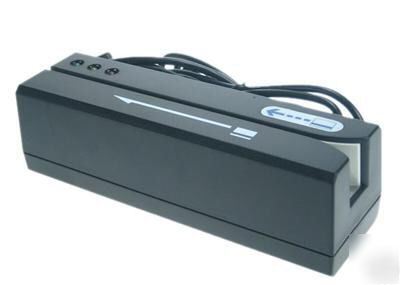

Magnetic credit card reader writer encoder 3 track
3 Tracks 1/2/3 Magnetic Card Reader/Writer Encoder
Magnetic card Read / Write software will be included
This is a Brand New 3 Tracks 1/2/3 Magnetic Stripe Card Reader/Writer.
This device can be connected with any computer or terminal with the RS-232 serial interface,and it can be used to read/write information on the magnetic stripe of the card with following features:
* Easy programming, read/write can be happened simultaneously
* Good quality made by Taiwan manufacturer
* Double check function of read/write
* Write/Copy to Lo-co (300Oe) only
* Direct connect to RS-232 port, NO external power supply is required
* Device comes with Magstripe Reader/Writer software
* Auto check power-up, auto-discriminate many record formats without command controls for each track
* Double indication of read/write, light and beep
* Able to read/write various magnetic cards and bank book with any media including the transparent medium
* Temperature : 0 C - 45 C
* Humidity : 10% - 90% RH
* Power Supply : DC+5V 280 mA
* Sweeping card speed : 10 - 120 cm/s
* Read/Write Standard : ISO7810, ISO7811-1,2,3,4,5 / IBM format
* 2nd track : 75 BPI/210 BPI
* Number of record characters :
* Communication mode : Serial asynchronous communication (RS-232)
* Life of magnetic head : >500,000 times
* Dimension : 21cm x 5cm x 6cm
US$30 internationally by 1st Class Express (Hong Kong Post Speed Post) (3 - 5 business days)
