> Instek gds-820C 150 mhz digital storage oscilloscope

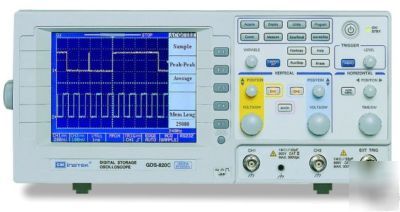

Instek gds-820C 150 mhz digital storage oscilloscope
Instek GDS820C, GDS820S, GDS840C, GDS840S
NEW with 2 Year Factory Warranty
* 150 MHz or 250 MHz Bandwidths
* 125k Long Memory and 12 Division Horizontal Display
* 100 MS/s Sampling Rate. 25 GSa/s for Repetitive Waveforms
* Advance Trigger: Pulse Width, TV-Line, Event Delay
* GO-No Go, Learn Mode and Auto Setup Sequence
* Standard Interface: USB, RS232, Printer Port.
* Built-in Help Menu with Multi-Languages
New Bench-Mark of the Mainstream DSO
The GDS-820C, GDS-820S, GDS-830, GDS-840C & GDS-840S Digital Storage Oscilloscopes, at 150 MHz or 250 MHz bandwidths, Color or Mono LCD display, are designed and built to meet the demands of a modern DSO in the mainstream market today. The unmatched performance, user-friendly design and versatile interface make the GDS-820/840 Series an indispensable piece of equipment for a variety of applications.
With Equivalent Time Sampling Technique, GDS-820/840 series perform up to 25G S/s sampling capability and provide high resolution of 40ps for repetitive waveforms. Comparing with 1GS/s and 2GS/s sampling DSOs, GDS-820/840 gives higher or equal sampling rate and longer record length of a transient signal at the same time-base because of its 125K long memory. Furthermore, this series offer an alternative to view the signal with 12 horizontal divisions, which matches long memory applications! GDS-820/840 advanced trigger functions, such as Pulse Width, TV Line, Event-Delay, and Time-Delay, offer a very strong trigger capability that could only be found in a high-end DSO!
The FFT function converts a captured waveform from time domain into frequency domain. The Go-No Go function gives an instant view of the performance of a DUT or can provide an easy way to monitor the abnormal event of a signal. The Learn Mode and Auto Setup Sequence functions let the user complete his ATE test procedures without software programming. With almost everything you could expect from a DSO, the GDS-820/840 series provides you with the best solution for waveform measurements at a surprisingly affordable price.
The straightforward operation of GDS-820/840 lets the user get started with DSO measurements right after the power-on! The Auto-Set function enables the DSO to automatically adjust the set-up and display the waveform in a proper way! The on-screen Help Manu tells you the operation information you need. Besides, 15 auto measurement functions of GDS-820/840 give you direct readouts of most of the frequently measured parameters!
The GDS-820/840 series has standard interfaces for USB, RS-232 and a Printer Port. (Optional GPIB, coming soon). With the USB interface and free software, you can quickly send the waveform from DSO to a PC. This enables the nearly synchronous waveform displays on both the DSO and the PC screen.
